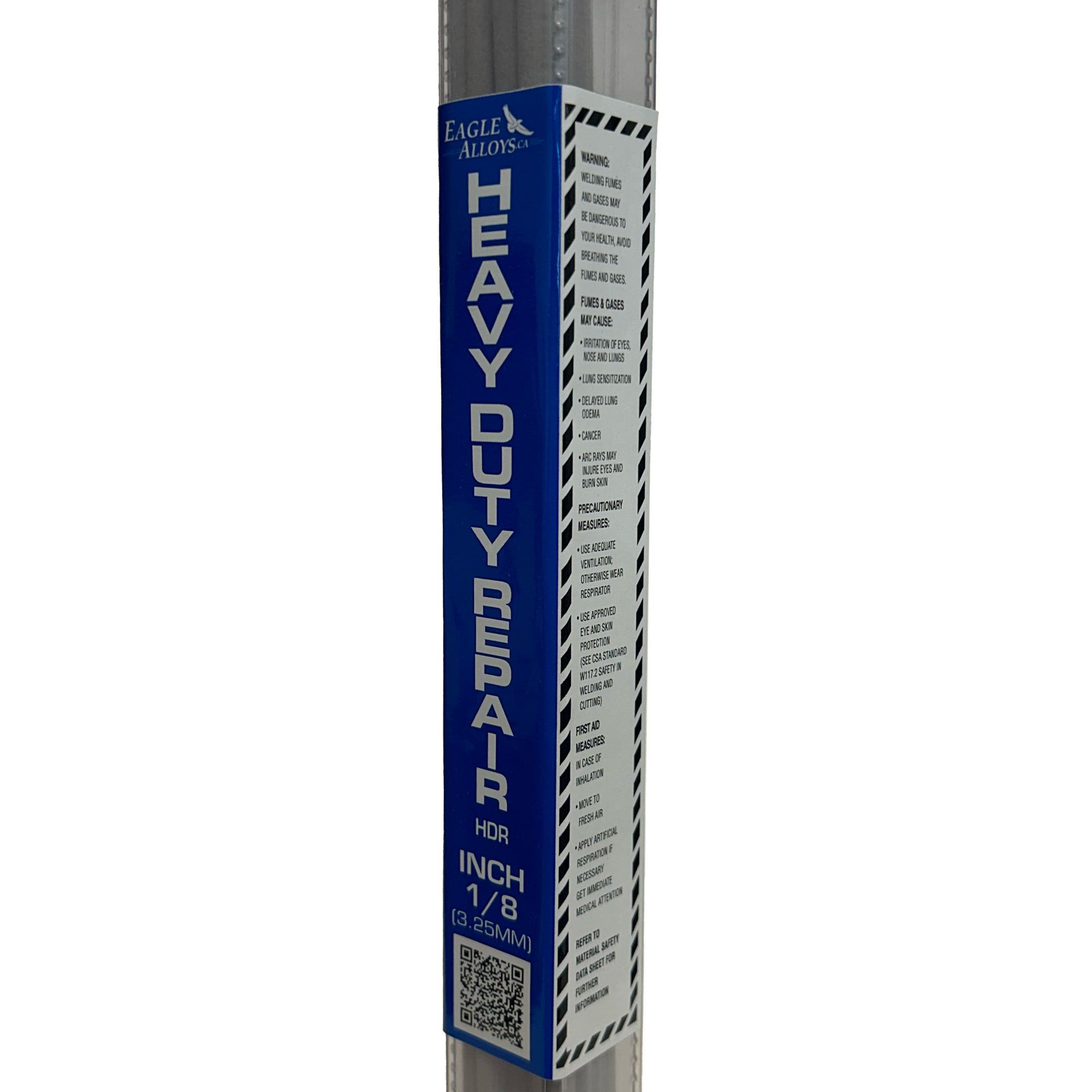

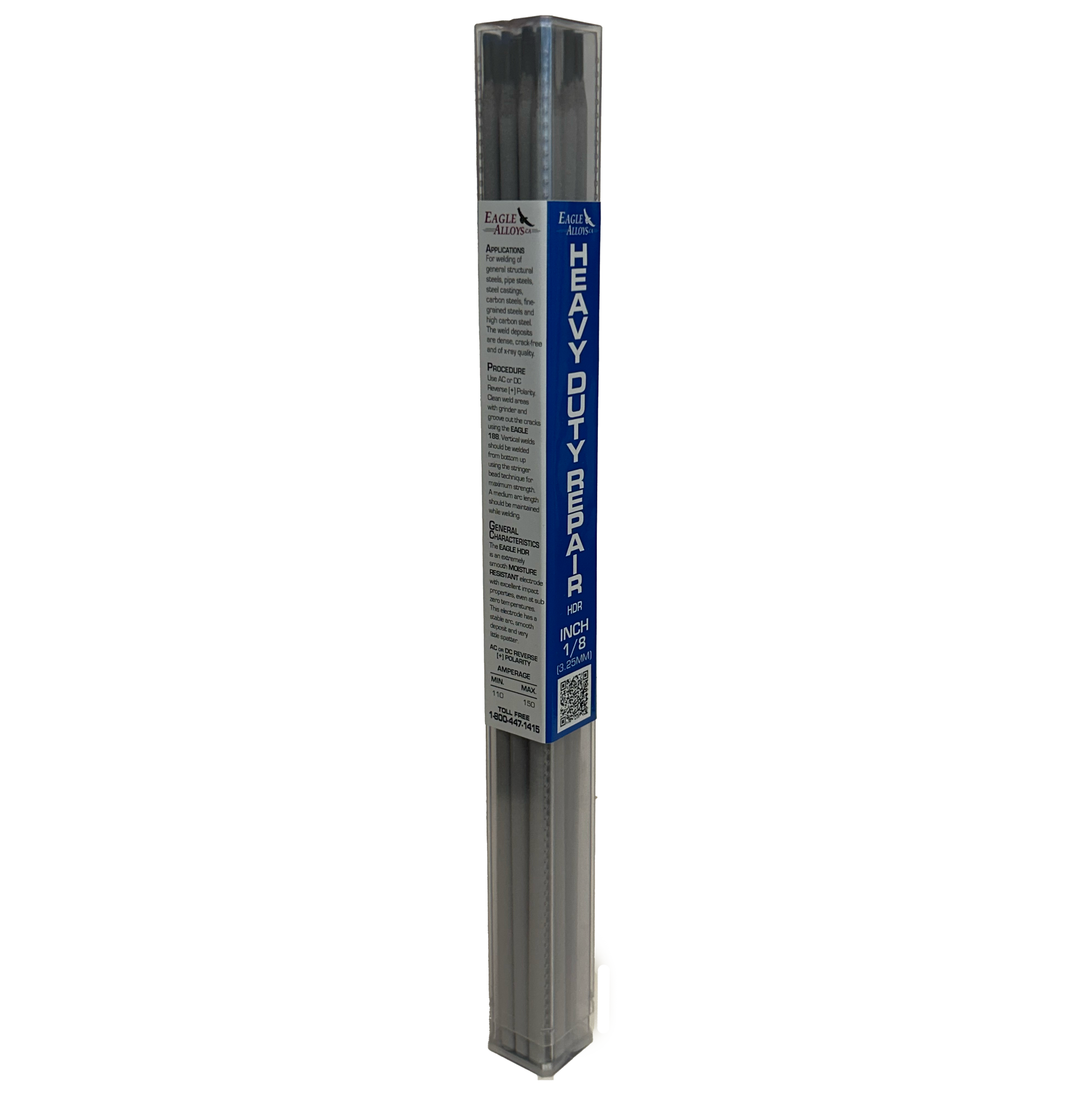

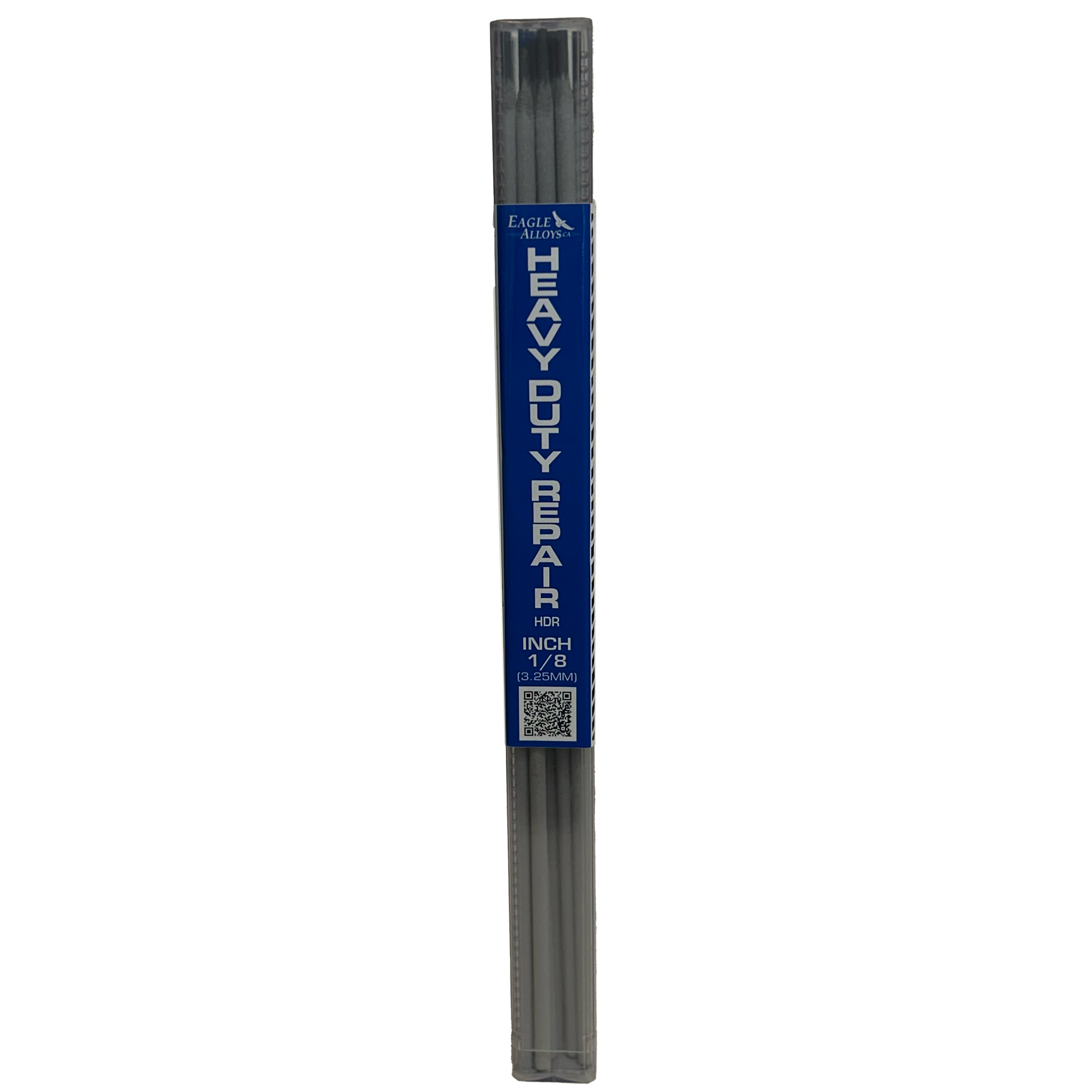

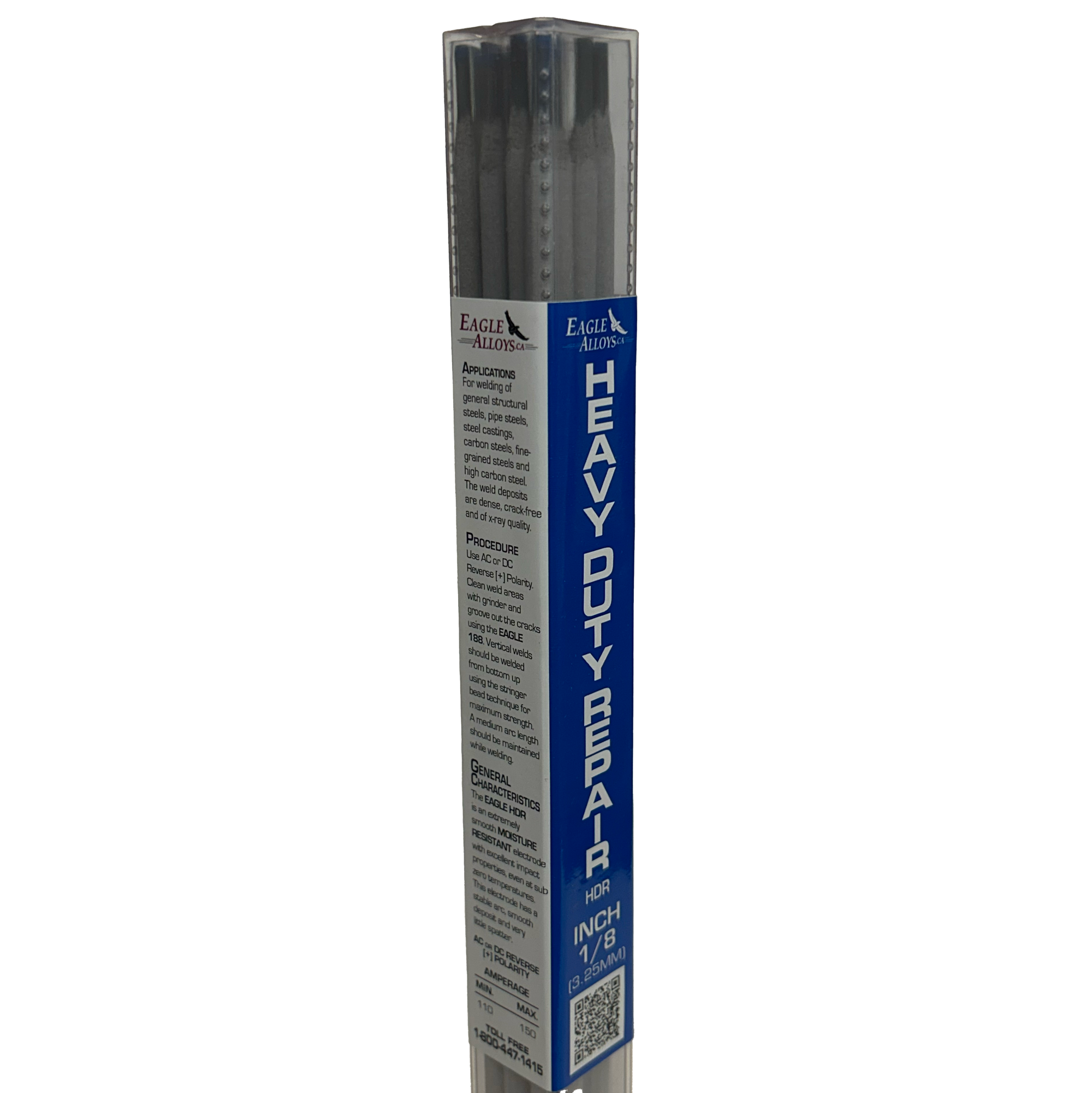

Name: Eagle Heavy Duty Repair | HDR
Brand: Eagle Alloys Welding
SKU: 823_XS_250_1
Price: 50.8 CAD
Availability: InStock

Description Description

The Eagle Heavy Duty Repair Is A MOISTURE RESISTANT All Position Controlled Low Hydrogen Electrode For Welding Steels Sensitive To Cracking

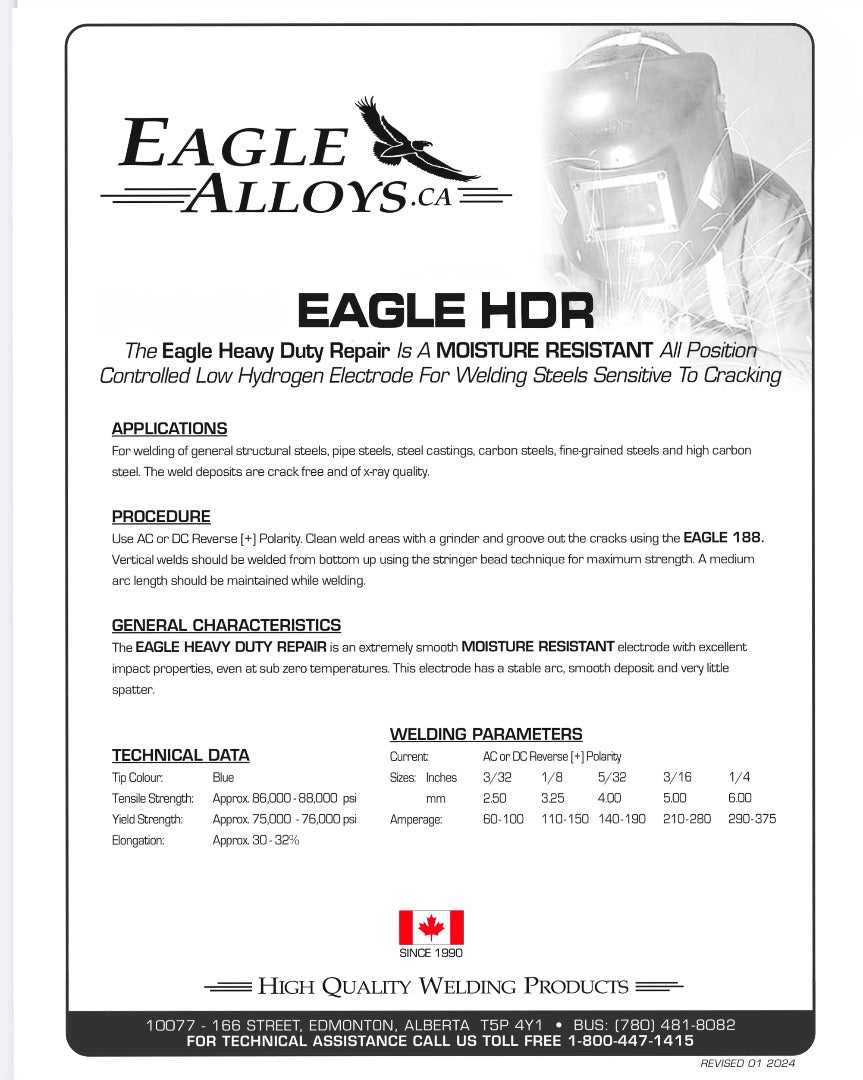

Eagle HDR Specification Sheet

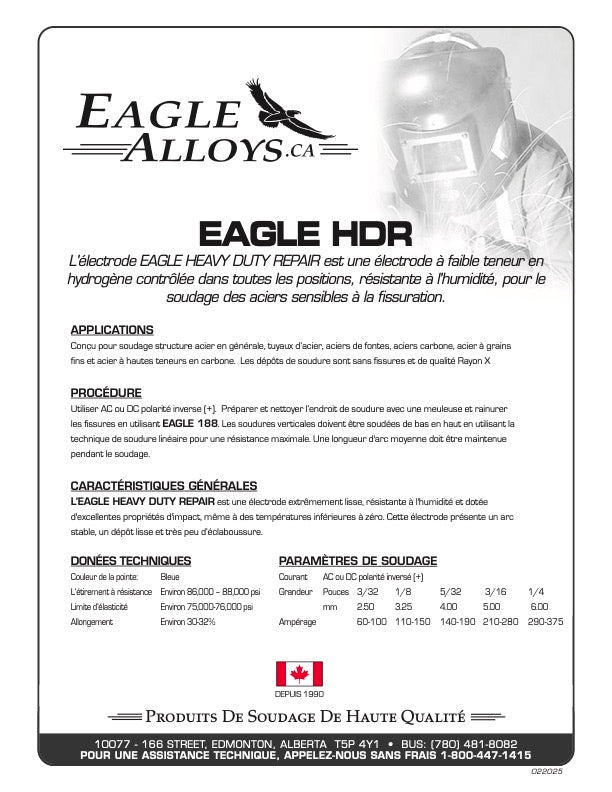

Eagle HDR Specification Sheet (French)

Eagle HDR Safety Data Sheet SDS

Eagle HDR SDS Safety Data Sheet (French)

APPLICATIONS APPLICATIONS

For welding of general structural steels, pipe steels, steel castings, carbon steels, fine-grained steels and high carbon steel. The weld deposits are crack free and of x-ray quality.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Clean weld areas with a grinder and groove out the cracks using the Eagle 188.
Vertical welds should be welded from bottom up using the stringer bead technique for maximum strength. A medium arc length should be maintained while welding.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The Eagle Heavy Duty Repair is an extremely smooth MOISTURE RESISTANT electrode with excellent impact properties, even at sub zero temperatures. This electrode has a stable arc, smooth deposit and very little spatter.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Blue
Tensile Strength: Approx. 86,000 - 88,000 psi
Yield Strength: Approx. 75,000 - 76,000 psi
Elongation: Approx. 30 - 32%

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes: Inches 3/32, 1/8, 5/32, 3/16, 1/4
mm 2.50, 3.25, 4.00, 5.00, 6.00
Amperage: 60 - 100 ,110 - 150, 140 - 190, 210 - 280, 290 - 375
