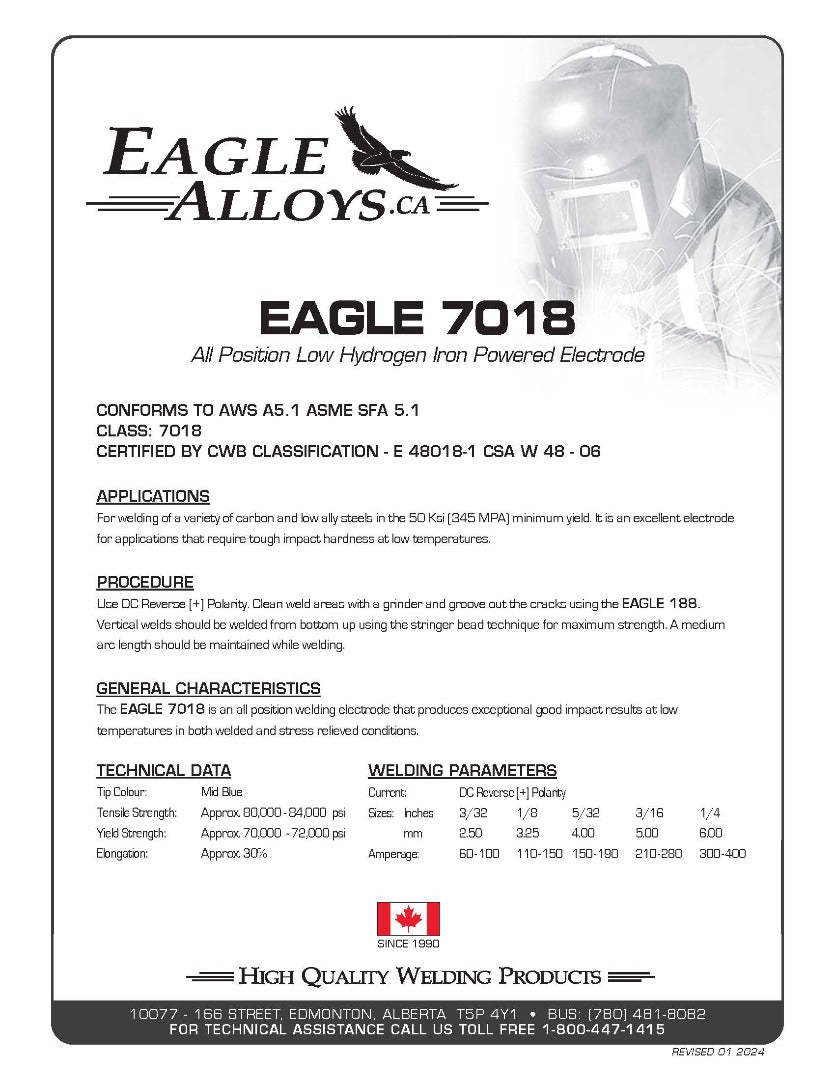

EAGLE 7018 All Position Low Hydrogen Iron Powered Electrode PDF
EAGLE 7018 – 1 All Position Low Hydrogen Iron Powered Electrode
EAGLE 7018 – 1 All Position Low Hydrogen Iron Powered Electrode
EAGLE 7018 – 1 All Position Low Hydrogen Iron Powered Electrode
EAGLE 7018 – 1 All Position Low Hydrogen Iron Powered Electrode
EAGLE 7018 All Position Low Hydrogen Iron Powered Electrode PDF

Free Shipping to Canada

EAGLE 7018

$36.37 CAD Sale Save
Diameter 3/32"
Size 1 LB Tube

All Position Low Hydrogen Iron Powered Electrode

CONFORMS TO AWS A5.1 ASME SFA 5.1

CLASS: 7018

CERTIFIED BY CWB CLASSIFICATION - E 48018-1 CSA W 48 - 06

For welding of a variety of carbon and low ally steels in the 50 Ksi (345 MPA) minimum yield. It is an excellent electrode for applications that require tough impact hardness at low temperatures.

Use DC Reverse [+] Polarity. Clean weld areas with a grinder and groove out the cracks using the EAGLE 188.
Vertical welds should be welded from bottom up using the stringer bead technique for maximum strength. A medium arc length should be maintained while welding.

The EAGLE 7018-1 is an all position welding electrode that produces exceptional good impact results at low temperatures in both welded and stress relieved conditions.

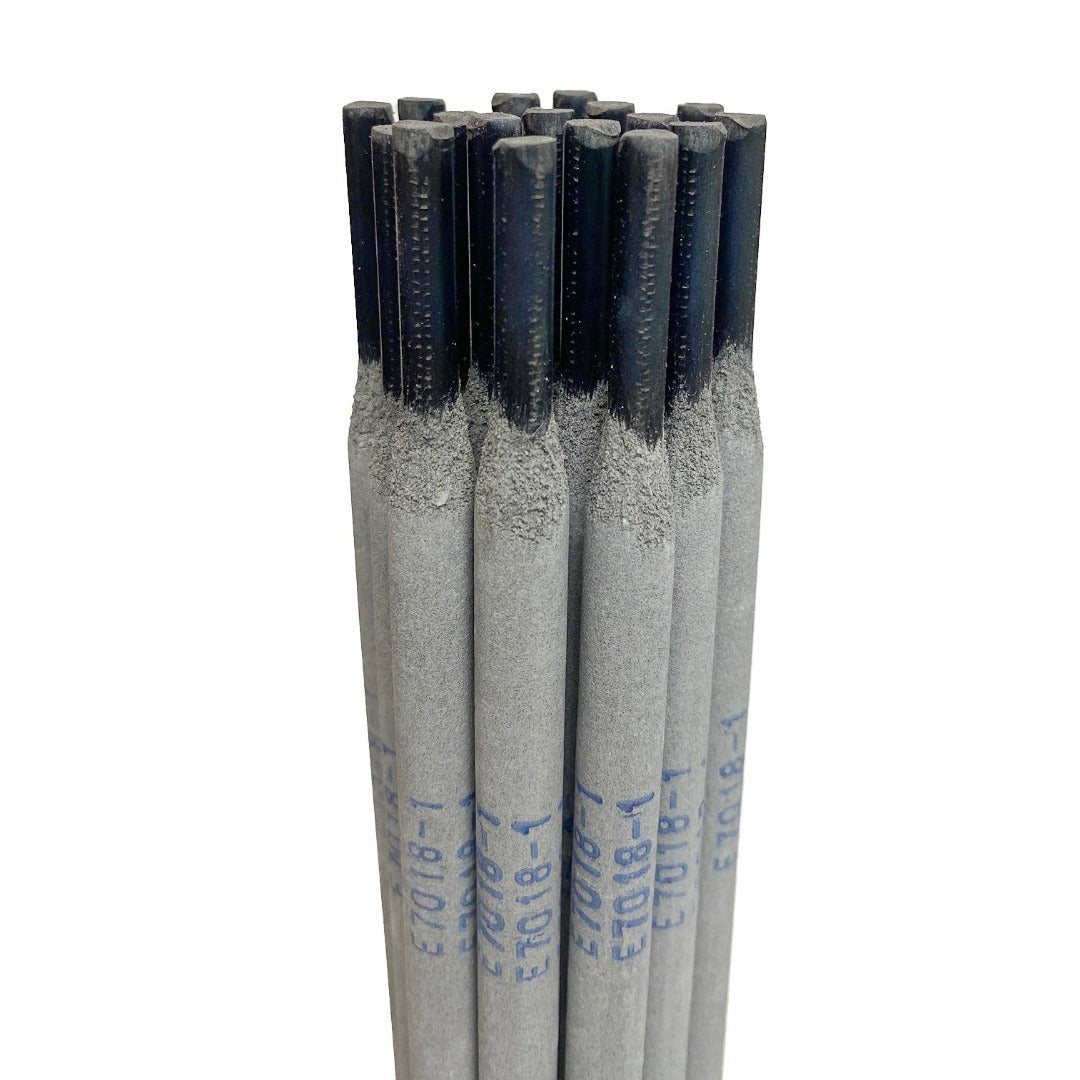

Tip Colour: Mid Blue

Tensile Strength: Approx. 80,000 - 84,000 psi

Yield Strength: Approx. 70,000 - 72,000 psi

Elongation: Approx. 30%

Current: DC Reverse [+] Polarity
Sizes: Inches 3/32, 1/8, 5/32, 3/16, 1/4
mm 2.50, 3.25, 4.00, 5.00, 6.00
Amperage: 60 - 100, 110 - 150, 150 - 190, 210 - 280, 300 - 400
