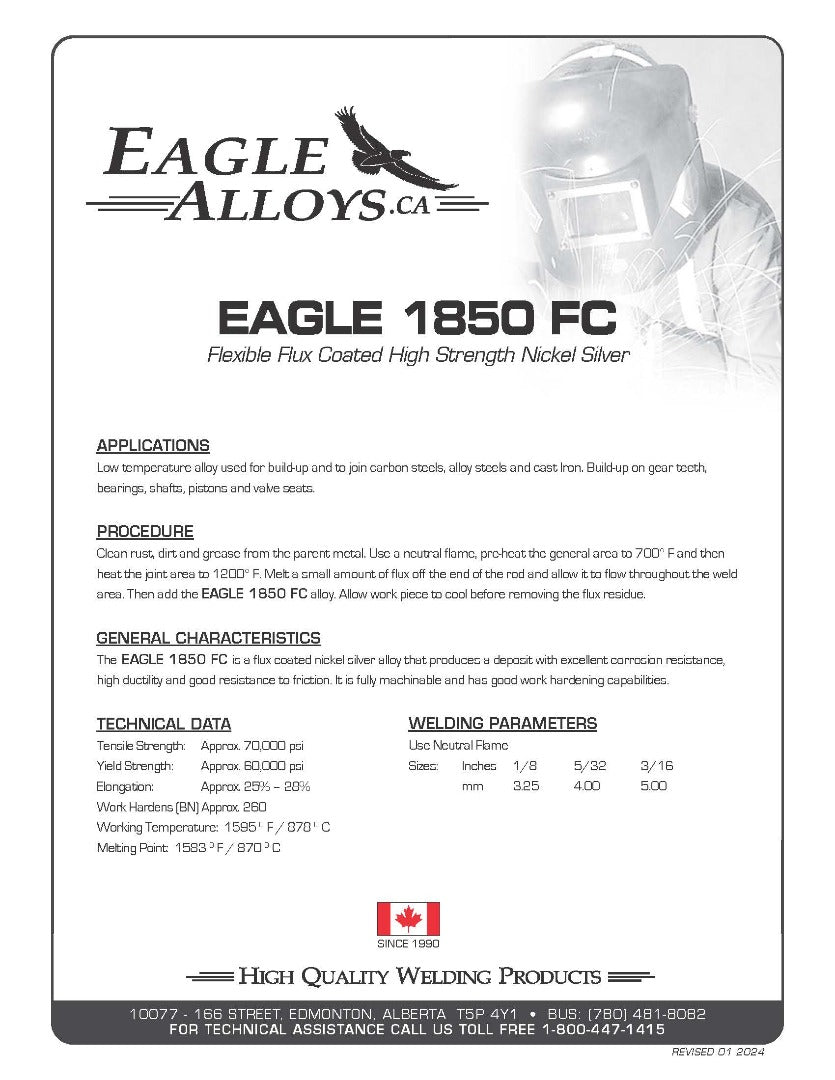

Name: EAGLE 1850 FC
Brand: Eagle Alloys Welding
SKU: 1850FC_16
Price: 84.45 CAD
Availability: InStock

Description Description

Flexible Flux Coated High Strength Nickel Silver

APPLICATIONS APPLICATIONS

Low temperature alloy used for build-up and to join carbon steels, alloy steels and cast iron. Build-up on gear teeth, bearings, shafts, pistons and valve seats.

PROCEDURE PROCEDURE

Clean rust, dirt and grease from the parent metal. Use a neutral flame, pre heat the general area to 700° F and then heat the joint area to 1200° F. Melt a small amount of flux off the end of the rod and allow it to flow throughout the weld area. Then add the EAGLE 1850 FC alloy. Allow work piece to cool before removing the flux residue.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 1850 FC is a flux coated nickel silver alloy that produces a deposit with excellent corrosion resistance, high ductility and good resistance to friction. It is fully machinable and has good work hardening capabilities.

TECHNICAL DATA TECHNICAL DATA

Tensile Strength: Approx. 70,000 psi

Yield Strength: Approx. 60,000 psi

Elongation: Approx. 25% – 28%

Work Hardens (BN) Approx. 260

Working Temperature: 1595 °F / 878 °C

Melting Point: 1583 °F / 870 °C

WELDING PARAMETERS WELDING PARAMETERS

Use Neutral Flame
Sizes:
Inches 1/8, 5/32, 3/16
mm 3.25, 4.00, 5.00
