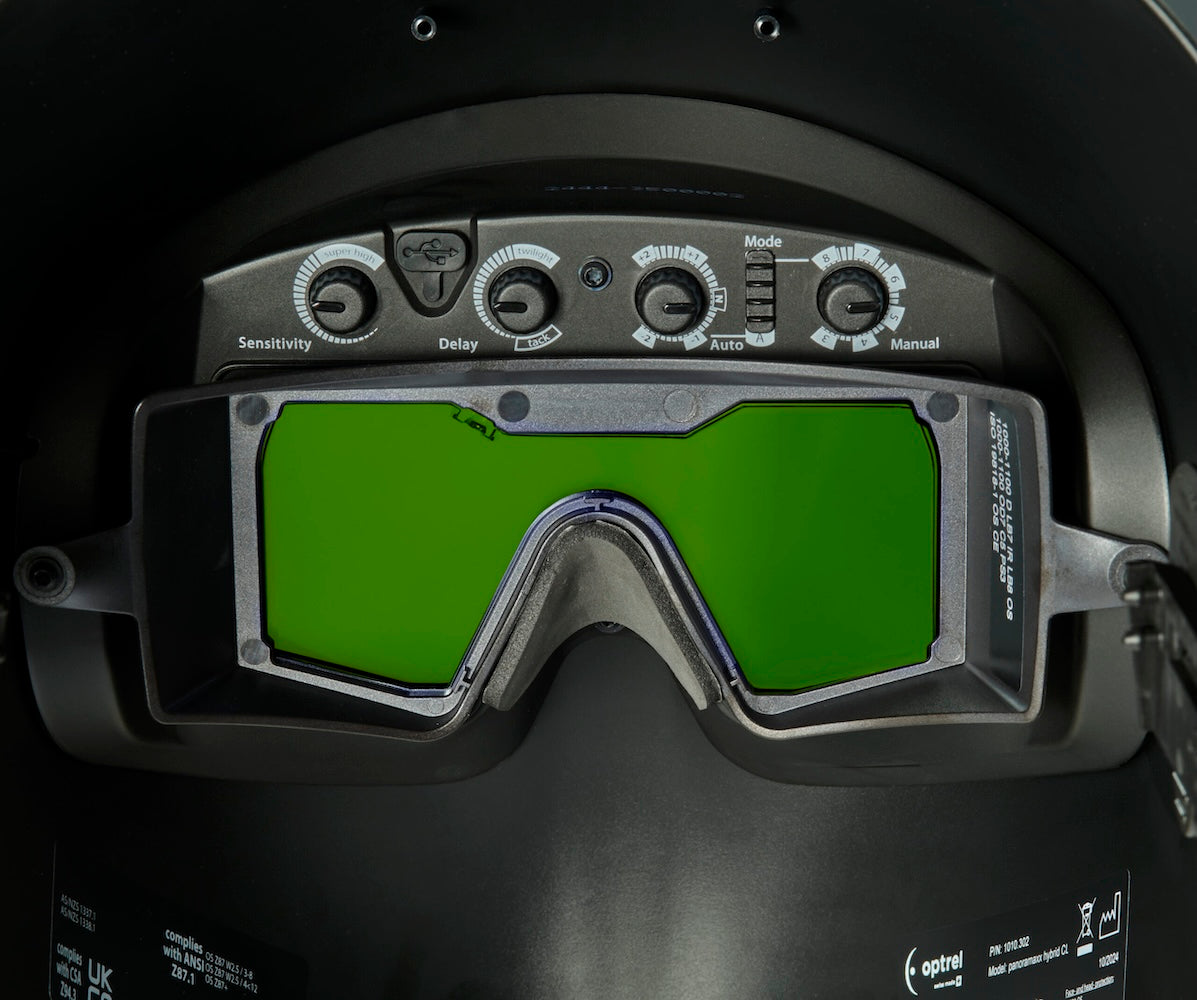

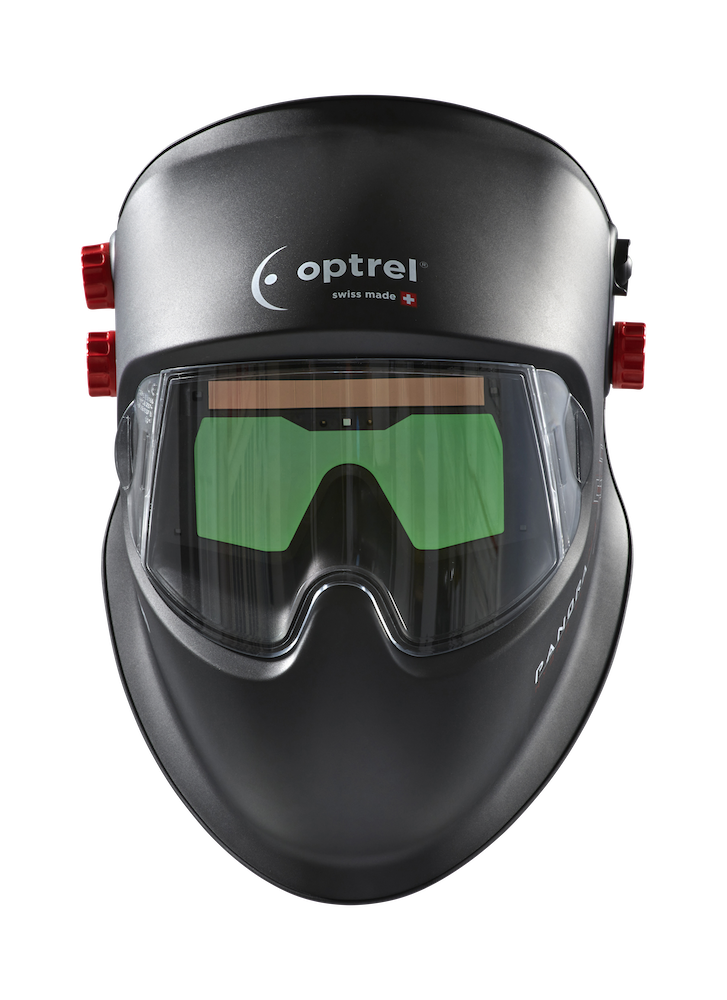

Optrel Panoramaxx Series Panoramaxx Hybrid CLT-Black: Laser-Welding Helmet

• Shade Levels Inactive: Shade level 2.5Active, Manual: Shade level 3-8 ShadeTronic 4-12
• Energy Supply Solar cells, Li-polymer battery pack, chargeable via Micro-USB
• Battery Life 300 to 500 charging cycles
• Sensors Five sensors
• Sensitivity Continuously, new with “Super High” sensitivity
• Switching time Light to Dark: 0.090ms at 20°C, 0.070ms at 55°CDark to Light: 0.1s to 2.0s (with FadeTronic)
• Field of Vision 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
• Classification EN379 1/1/1/1
• Eye Protection UV/IR protection: maximum protection at all shade levels Laser protection: 1000-1100nm 16321 OS W3/4-9/5<13 V21000-1100 D LB7 IR LB8 OS1000-1100 OD7 C5 PS3ISO 19818-1 OS CE
• Operating Temperature -10°C to +55°C / 14°F to 131°F
• Storage Temperature -20°C to +70°C / -4°F to 158°F
• Total Weight 685g / 24.02 oz
• Certifications CE, UKCA, complies to ANSI Z87.1, AS/NZS 1337.1, AS/NZS 1338.1, CSA Z94.3
• Scope of Delivery Welding helmet, Optrel IsoFit® Headgear, Operating Instructions, Storage Bag, Micro USB Charging Cable, Front Cover Lens, Warranty Card
• Guarantee 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: click here to register

• Laser welding – laser range 1000 – 1100 nm
• Electrode Welding (Stick Welding, SMAW)
• MIG/MAG (GMAW)
• GMAW High melting rate process
• Flux Cored Wire Welding
• TIG Welding (GTAW)
• Plasma Arc Welding
• Plasma Cutting
• Gas Welding
• Grind Mode

Techdata_panoramaxx hybrid clt_EN_24.10.2024
