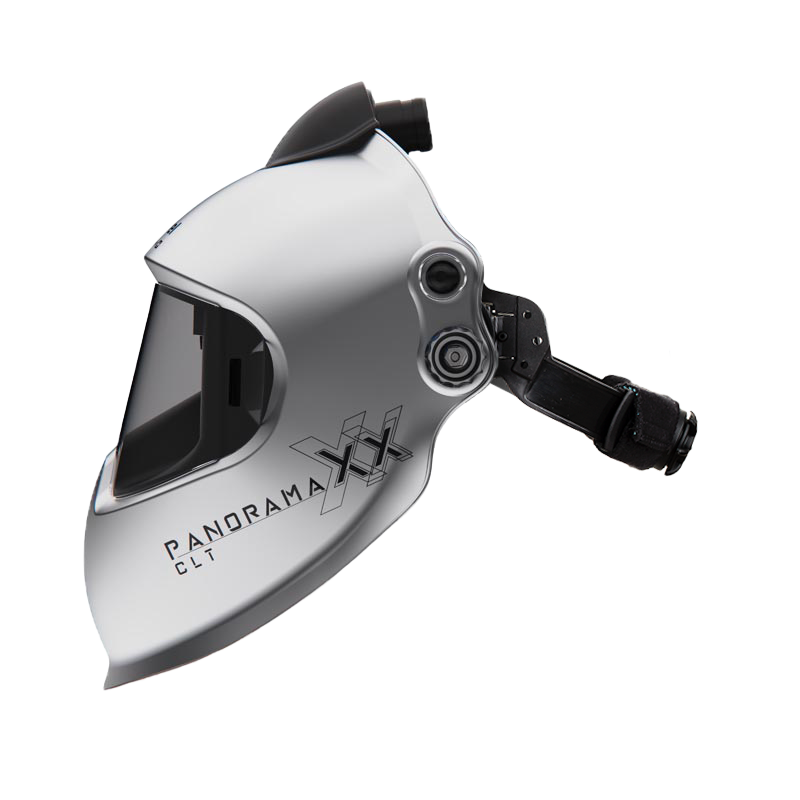

Optrel Panoramaxx Series Panoramaxx CLT PAPR (Silver)

Name: Optrel Panoramaxx Series Panoramaxx CLT PAPR (Silver)
Brand: Optrel
SKU: 4441.781.US
Price: 1328.67 CAD
Availability: InStock

$1,328.67 CAD

Free Shipping within Canada

Description Description

The world famous Crystal Lens Technology 2.0 is now also available in the Panoramaxx CLT version. The color perception in the light state comes very close to the view through a clear glass window and in the dark state you get a detailed and high contrast view of the welding pool in a clarity never seen before. Unlock your true potential – with the Panoramaxx CLT.

Helmet ONLY. Compatible with the e3000x NIOSH-approved PAPR system.

Specifications Specifications

Protection levels Autopilot Inactive: Protection level 2.0Active, Manual: Protection level 8-12Automatic protection level regulation over the protection level range 4 <12M with individual calibration option of ± 2.
Power supply Solar cells, Li-polymer battery, can be charged via micro USB cable
Battery life 300 to 500 charging cycles
Sensors Five sensors
Sensitivity Infinitely adjustable, new with “Super High” sensitivity
Switching time Light to Dark: 0.090ms at room temp, 0.070ms at 55°CDark to Light: 0.1 s to 2.0 s (with FadeTronic)
Field of View Depending on the headband setting, 2.3 to 6.3 times the field of view of a 100 x 50mm industry standard anti-glare cassette
Classification EN379 Optical Class: 1Stray Light Class: 1Homogeneity Class: 1Angle Dependency Class: 2
Field of View Depending on the headband setting, 2.3 to 6.3 times the field of view of a 100 x 50mm industry standard anti-glare cassette
Dimensional Stability Protective Welding Mask: up to 220°CFront Lens: Up to 137°C
Eye Protection Ultraviolet / Infrared Protection: Maximum protection in the entire protection level range
Operating Temperature -10°C to +55°C / 14°F to 131°F
Storage Temperature -20°C to +70°C / -4°F to 158°F
Total Weight 600g / 21.2oz (silver 610g / 21.5oz) (PAPR 770g / 780g)
Certifications NIOSH, CE, ANSI, EAC, AS / NZS, meets CSA Z94.3, additionally with PAPR version EN 12941 (TH3) and for the SuppliedAir version EN14594 (3B)Meets the pr ISO 16321 standards “WIG +” (“low amp Tig “Procedure)
Scope of Delivery Welding helmet, Operating Instructions, Storage Bag, Micro USB Charging Cable, Lens, Warranty Card
Guarantee 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months:click here to register
