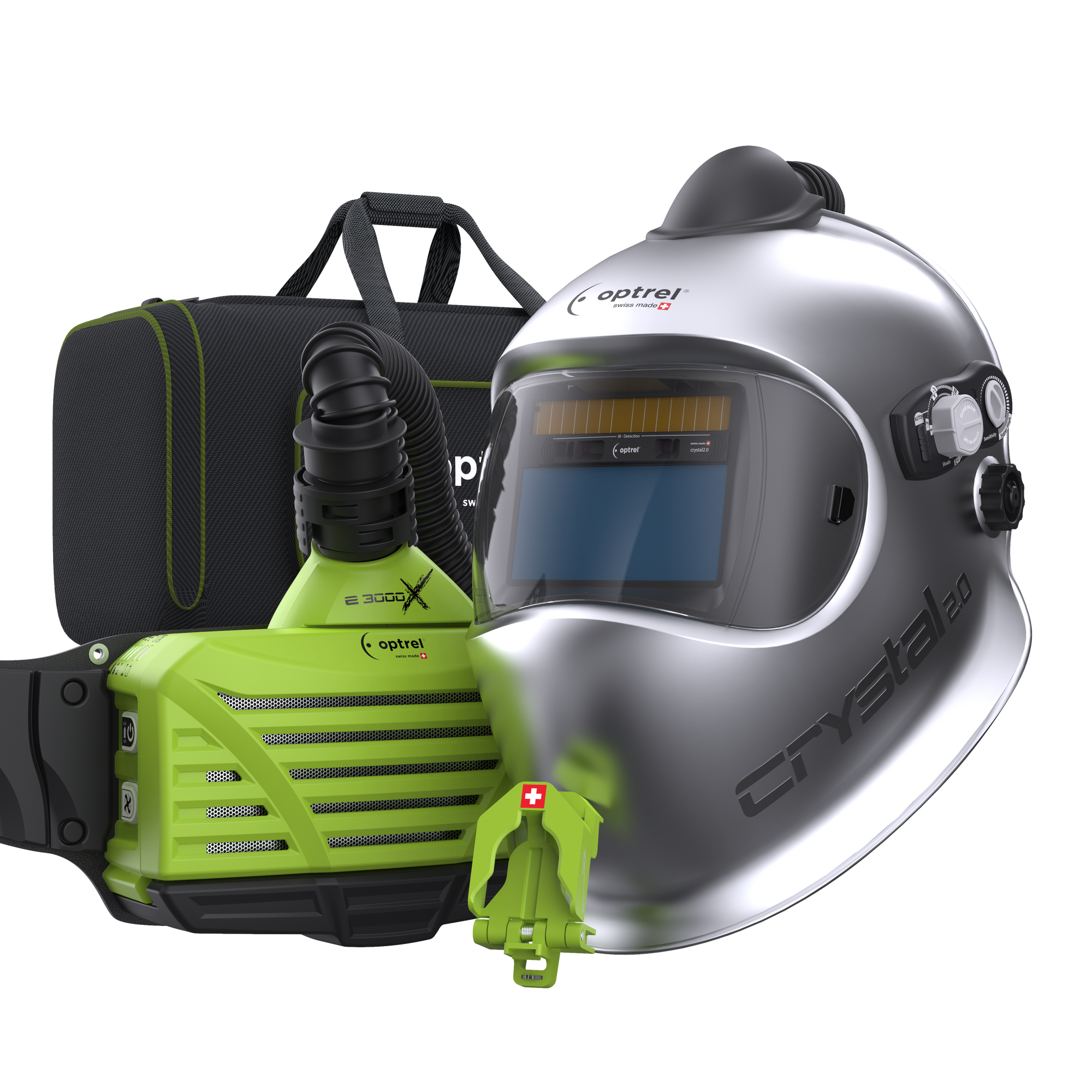

Optrel e3000x system with crystal2.0 papr Welding Helmet

$2,897.60 CAD Sale Save

For the first time in the history of welding you as a welder see the joining process as it actually takes place. How the weld pool melts, how the weld seam is created. You can see how the filler material is immersed in the welding pool and gain complete control over your work.

CLT offers you brilliant vision, like through a window pane. Crystal clear. And thanks to optrel Autopilot always with the right protection level.

e3000x PAPR Brochure

As far as always the distinction can be seen upon taking a closer look. With the crystal lens technology you will recognize the difference immediately when putting it on.

The color perception in light state is almost like looking through clear window glass and in dark mode you enjoy a detailled and high-contrast view of the welding pool with a never-seen-before clearness.

With light transmission of 31% in bright condition (protection level 2!) welders have for the first time a practically unclouded and clear view of their working environment. This in combination with the almost perfect colour spectrum of the CLT2.0 for the first time allows welders to see what is really going on in the weld pool, and with a clarity that equates to insights into a new dimension. This is why welders describe this as an enlightenment.

- Elektrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Micro Plasma Arc Welding
- Plasma Cutting
- Grind Mode

Shade levels

  • inactive: shade level 2.0
  • active, manual: shade level 4-12

Autopilot

Automatic protection level regulation across a range from 4-12 with individual calibration option of ± 2

Power supply

Solar cells, 2 lithium batteries (CR2032)

Sensors

Three Sensors

Sensitivity

Infinitely adjustable, now with “super high” sensitivity

Switching time

  • bright to dark: 0.100 ms at room temperature at 55°C0.070 ms at 55°C
  • dark to bright: 0.1 s to 2.0 s (with dimming function)

EN379 classification

  • Optical class: 1
  • Scattered light: 1
  • Homogeneity: 1
  • Angular dependence: 2

Shape stability

  • Welding mask: up to 220 °C / 428 °F
  • Front cover lens: up to 137 °C / 279 °F

Eye protection Ultraviolet / Infrared Protection

maximum protection at any shade level

Operating temperature

-10°C to + 70°C / 14°F to 158°F

Storage temperature

-20°C to + 80°C / -4°F to 176°F

Weight

460 g / 18,7 oz

Scope of delivery

Welding helmet, manual

Warranty

from date of purchase: 2 years for manufacturing and material defects, 6 months for battery

Warranty extension

1 year additional (battery excluded) for online product registration within the first 6 months (from date of purchase) on optrel.com/register
