EAGLE 560 FGS Superior gas shielded flux cored wire for slight impact and high abrasion.

EAGLE 560 FGS Superior gas shielded flux cored wire for slight impact and high abrasion PDF

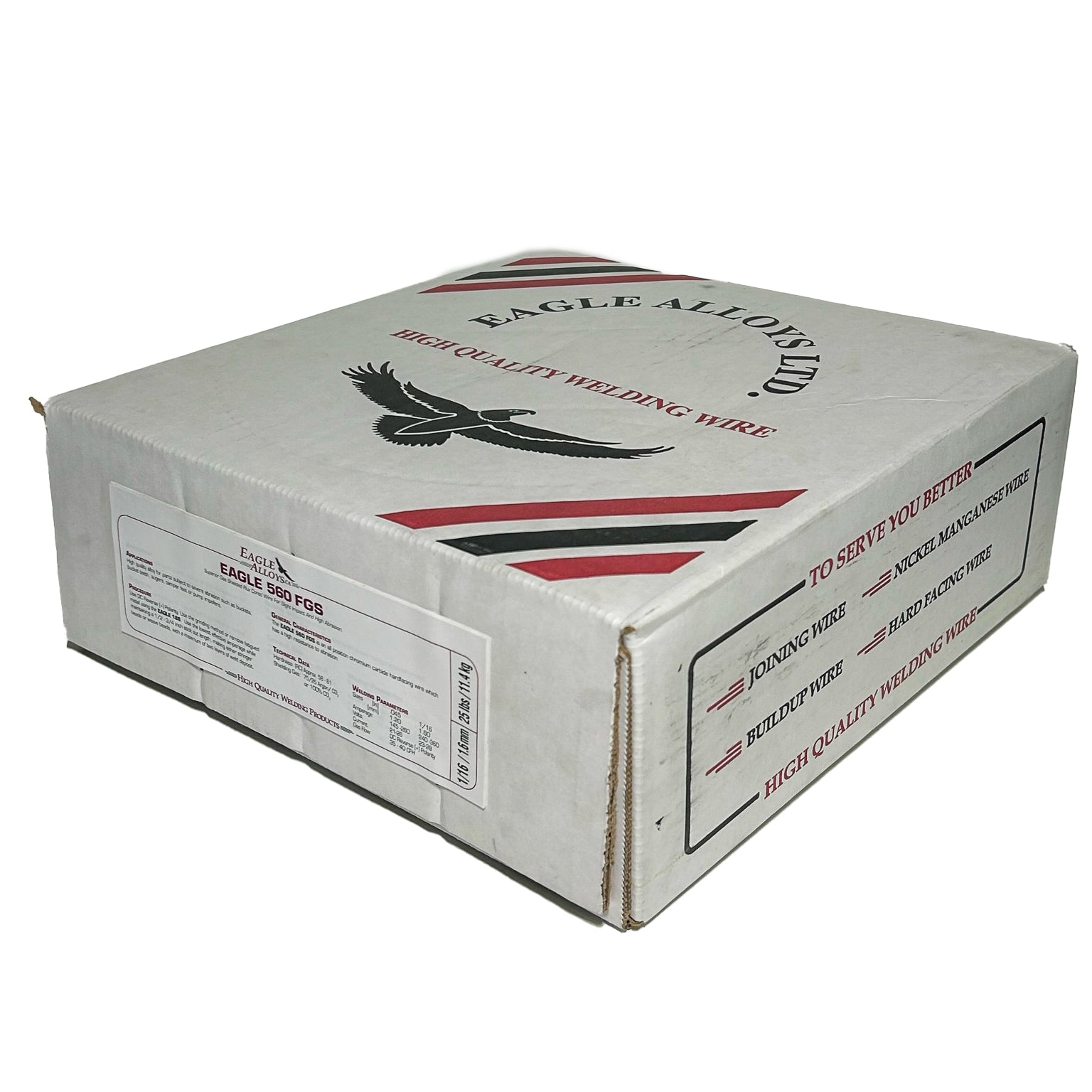

Eagle 560 FGS

Name: Eagle 560 FGS
Brand: Eagle Alloys Welding
SKU: 560_FGS_120
Price: 931.85 CAD
Availability: InStock

$931.85 CAD

Size .045

.045 1/16"

Weight

25 LB (11.34 KG) Spool

Free Shipping within Canada

Description Description

Superior Gas Shielded Flux Cored Wire For Slight Impact And High Abrasion

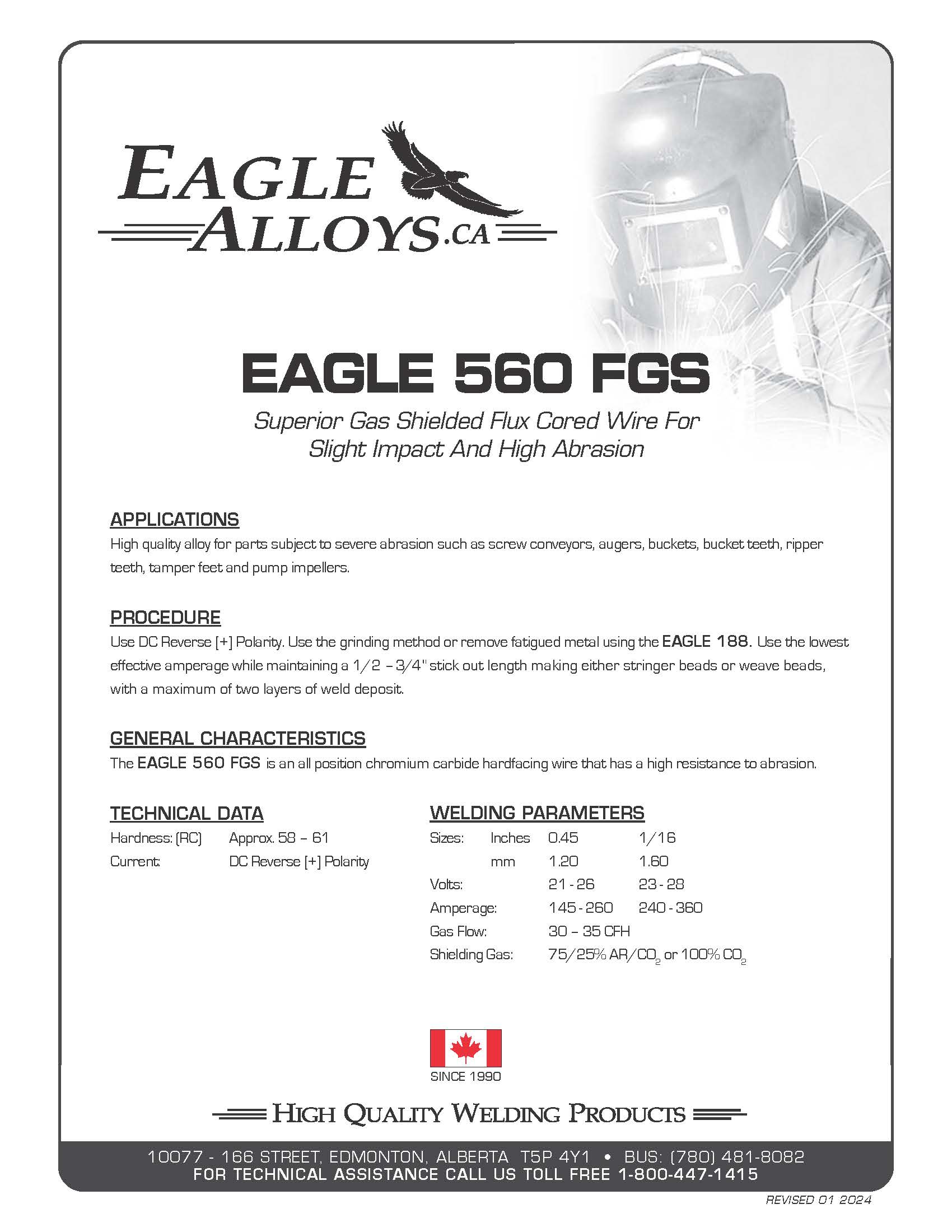

Eagle 560 FGS Specification Sheet

Eagle 560 FGS Safety Data Sheet SDS

APPLICATIONS APPLICATIONS

High quality alloy for parts subject to severe abrasion such as screw conveyors, augers, buckets, bucket teeth, ripper teeth, tamper feet and pump impellers.

PROCEDURE PROCEDURE

Use DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use the lowest effective amperage while maintaining a 1/2 – 3/4" stick out length making either stringer beads or weave beads, with a maximum of two layers of weld deposit.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 560 FGS is an all position chromium carbide hardfacing wire that has a high resistance to abrasion.

TECHNICAL DATA TECHNICAL DATA

Hardness: (RC) Approx. 58 – 61

Current: DC Reverse [+] Polarity

WELDING PARAMETERS WELDING PARAMETERS

Sizes: Inches 0.45, 1/16
mm 1.20, 1.60
Volts: 21 - 26, 23 - 28
Amperage: 145 - 260, 240 - 360
Gas Flow: 30 – 35 CFH
Shielding Gas: 75/25% AR/CO₂ or 100% CO₂
