Name: EAGLE 606
Brand: Eagle Alloys Welding
SKU: 606_2.50_1
Price: 48.79 CAD
Availability: InStock

Diameter 3/32"

3/32" 1/8" 5/32" 3/16" 1/4"

Size 1 LB Tube

1 LB Tube 10 LB Sleeve 60 LB Box

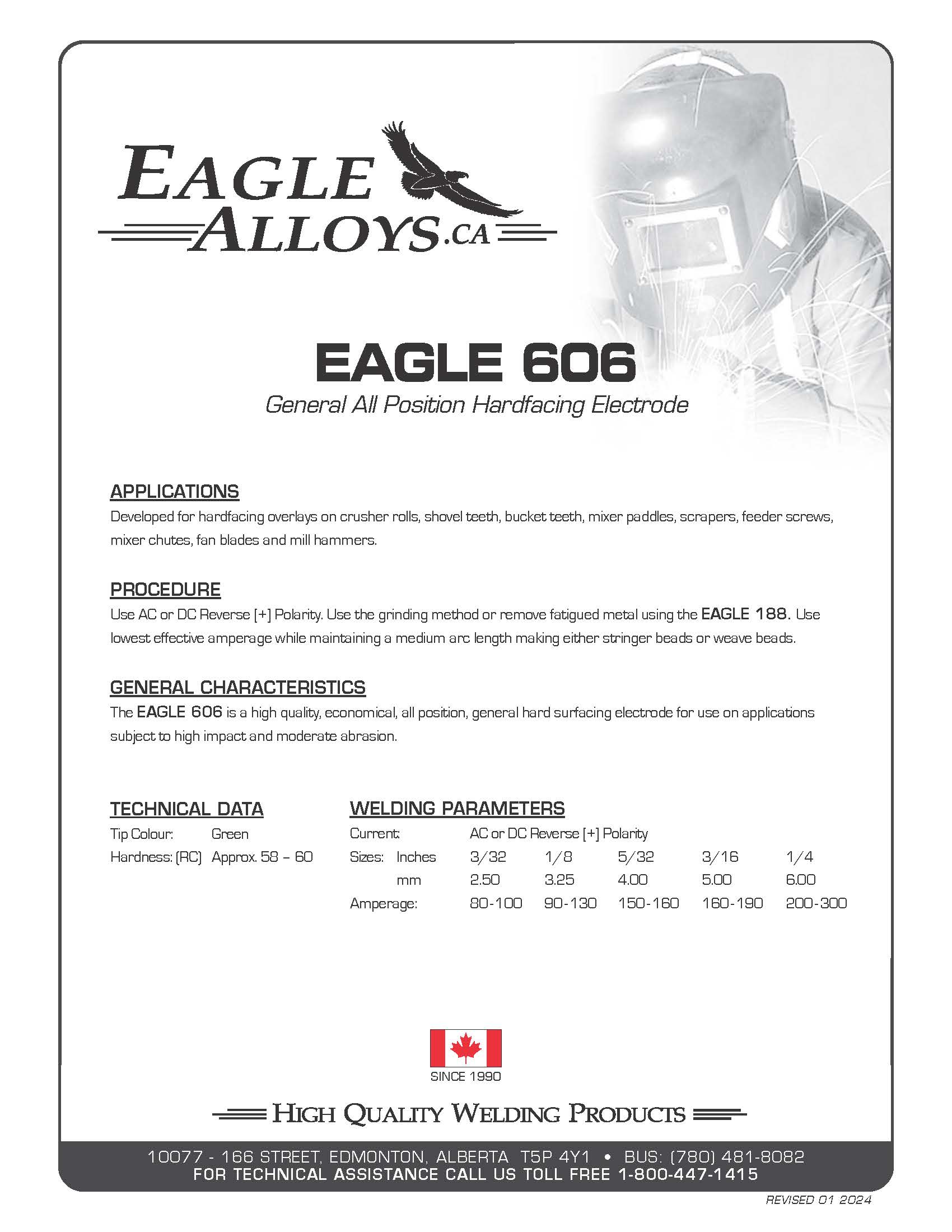

Description Description

General All Position Hard Facing Electrode

APPLICATIONS APPLICATIONS

Developed for hardfacing overlays on crusher rolls, shovel teeth, bucket teeth, mixer paddles, scrapers, feeder screws, mixer chutes, fan blades and mill hammers.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use lowest effective amperage while maintaining a medium arc length making either stringer beads or weave beads.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 606 is high quality, economical, all position, general hard surfacing electrode for use on applications subject to high impact and moderate abrasion.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Green

Hardness: (RC) Approx. 58 – 60

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes: Inches 3/32 1/8 5/32 3/16 1/4
mm 2.50 3.25 4.00 5.00 6.00
Amperage: 80 - 100 90 - 130 150 - 160 160 - 190 200 - 300
