EAGLE 308 L-16 Welding Electrode: High Strength for Stainless Steel Bundle

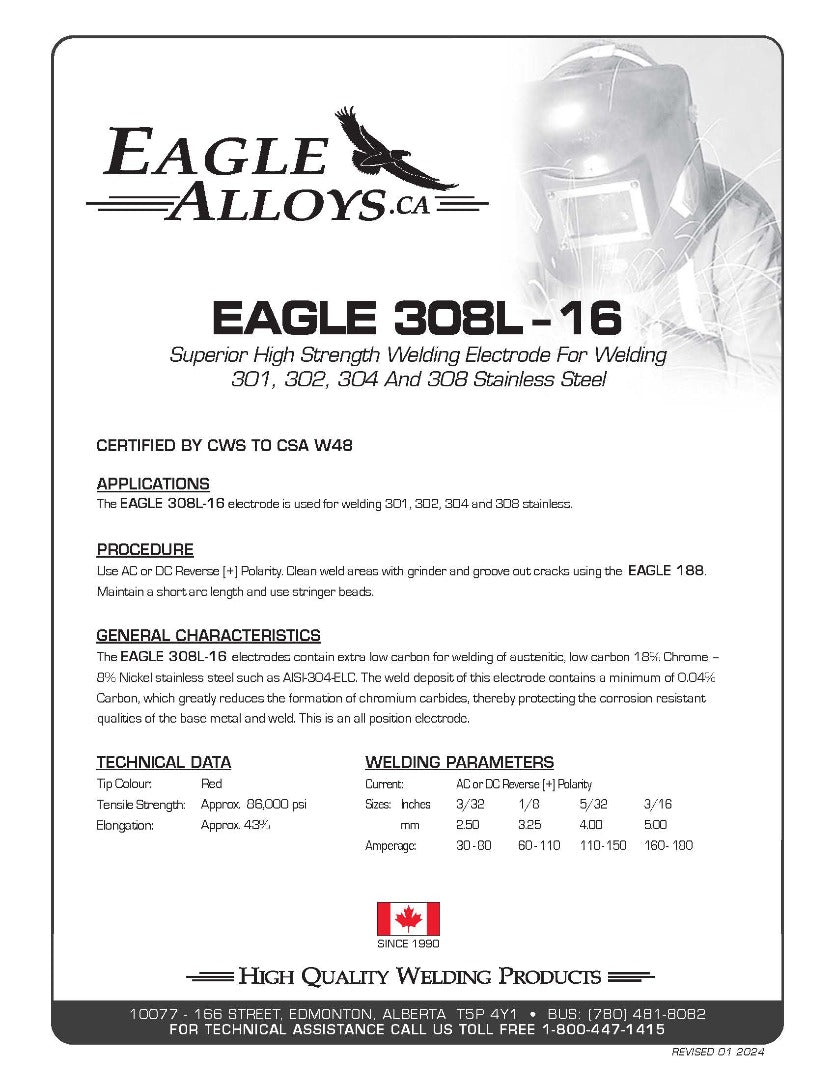

EAGLE 308 L-16 Welding Electrode: High Strength for Stainless Steel PDF: Applications, Procedure, General Characteristics, Technical Data, Welding Parameters

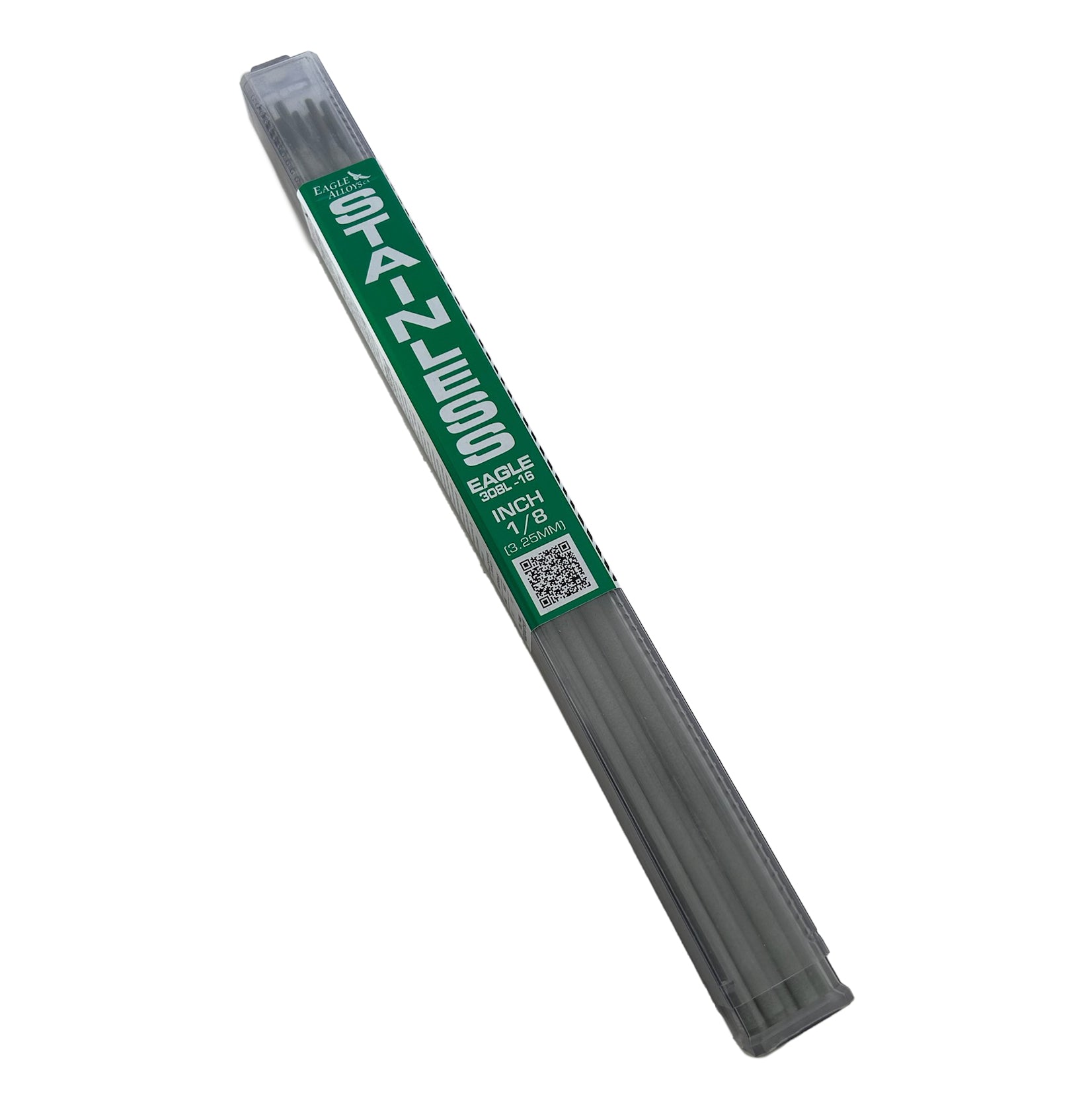

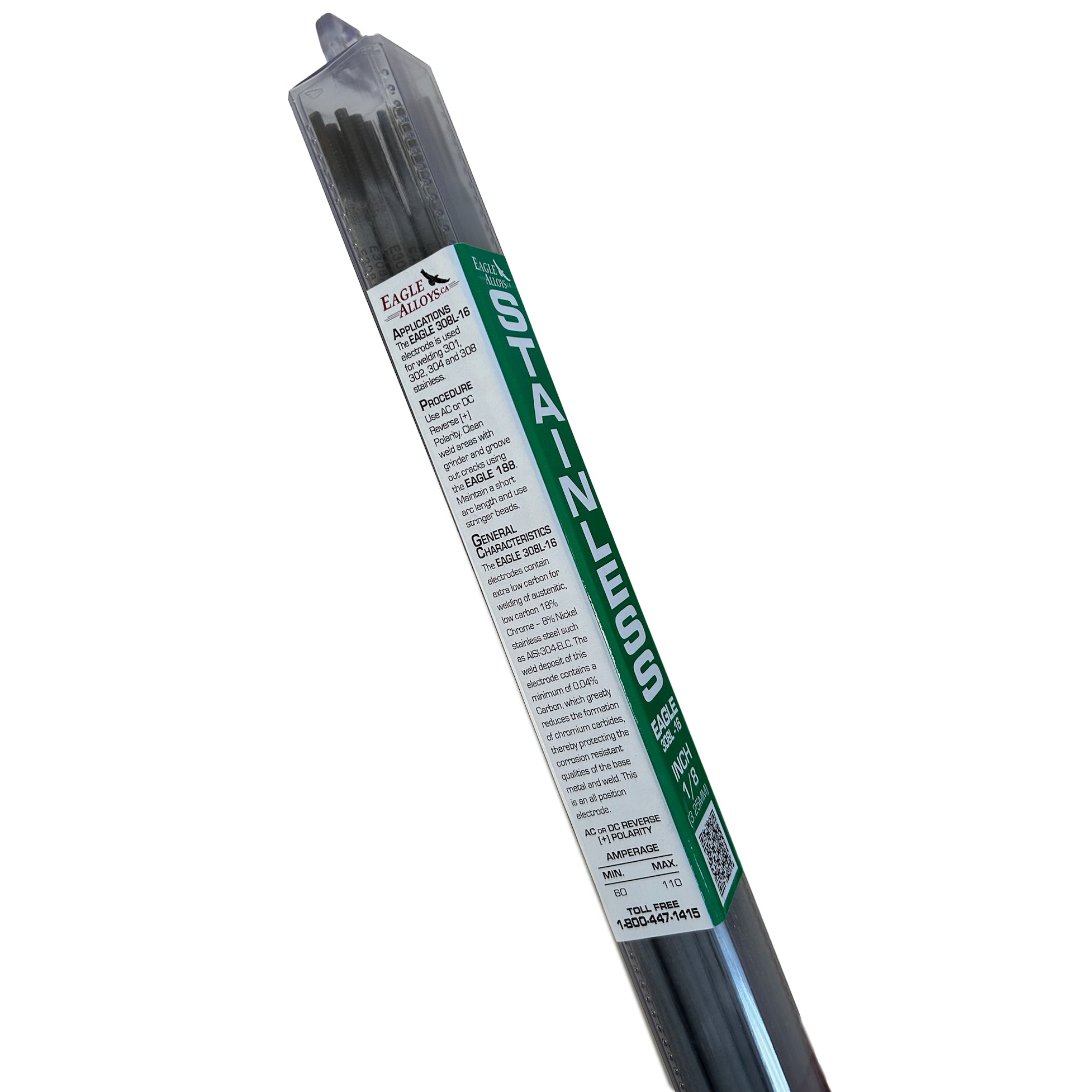

EAGLE 308 L-16

Name: EAGLE 308 L-16
Brand: Eagle Alloys Welding
SKU: 308_L-16_25_10
Price: 292.0 CAD
Availability: InStock

$292.00 CAD

Diameter 3/32"

3/32" 1/8" 5/32"

Size

10 LB (4.54 KG) Sleeve

Free Shipping to Canada

Description Description

Superior high strength welding electrode for welding 301, 302, 304 and 308 stainless steel.

Certified by CWB to CSA W48.

Application Application

The EAGLE 308L-16 electrode is used for welding 301, 302, 304 and 308 stainless.

Procedure Procedure

Use AC or DC Reverse [+] Polarity. Clean weld areas with grinder and groove out cracks using the EAGLE 188. Maintain a short arc length and use stringer beads.

General Characteristics General Characteristics

The EAGLE 308L-16 electrodes contain extra low carbon for welding of austenitic, low carbon 18% Chrome – 8% Nickel stainless steel such as AISI-304-ELC. The weld deposit of this electrode contains a minimum of 0.04% Carbon, which greatly reduces the formation of chromium carbides, thereby protecting the corrosion resistant qualities of the base metal and weld. This is an all position electrode.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Red

Tensile Strength: Approx. 86,000 psi

Elongation: Approx. 43%

Shielding Gas: 75/25 AR/CO2 or 100% CO2

Gas Flow: 30 – 40 CFH

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes: Inches 3/32, 1/8, 5/32, 3/16
mm 2.50, 3.25, 4.00, 5.00
Amperage: 30-80, 60-110, 110-150, 160- 180
