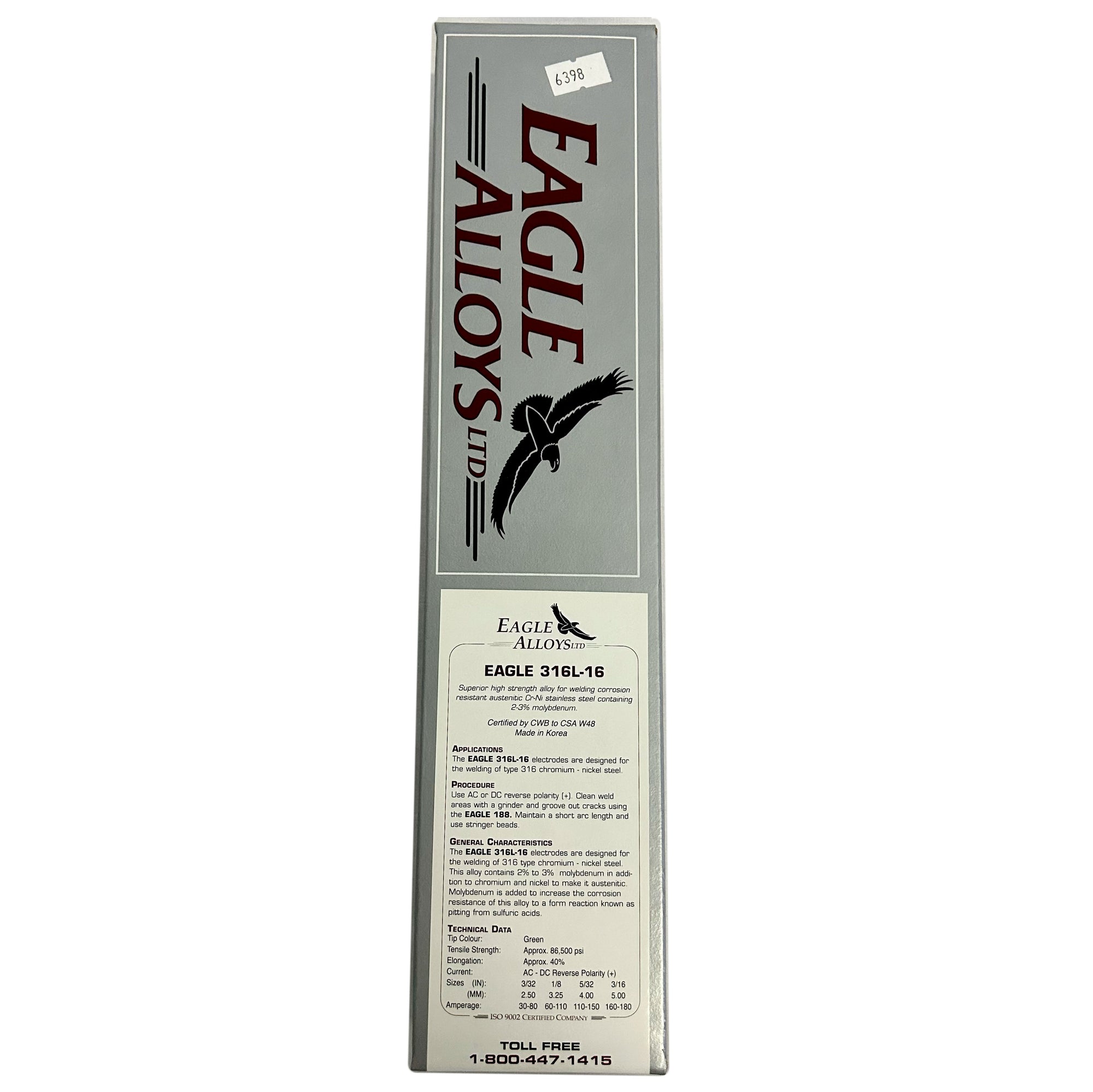

Name: EAGLE 316 L-16
Brand: Eagle Alloys Welding
SKU: 316_L-16_250_10
Price: 327.2 CAD
Availability: InStock

Description Description

Superior high strength alloy for welding corrosion resistant austenitic Cr-Ni stainless steel containing 2-3% molybdenum.

Certified by CWB to CSA W48.

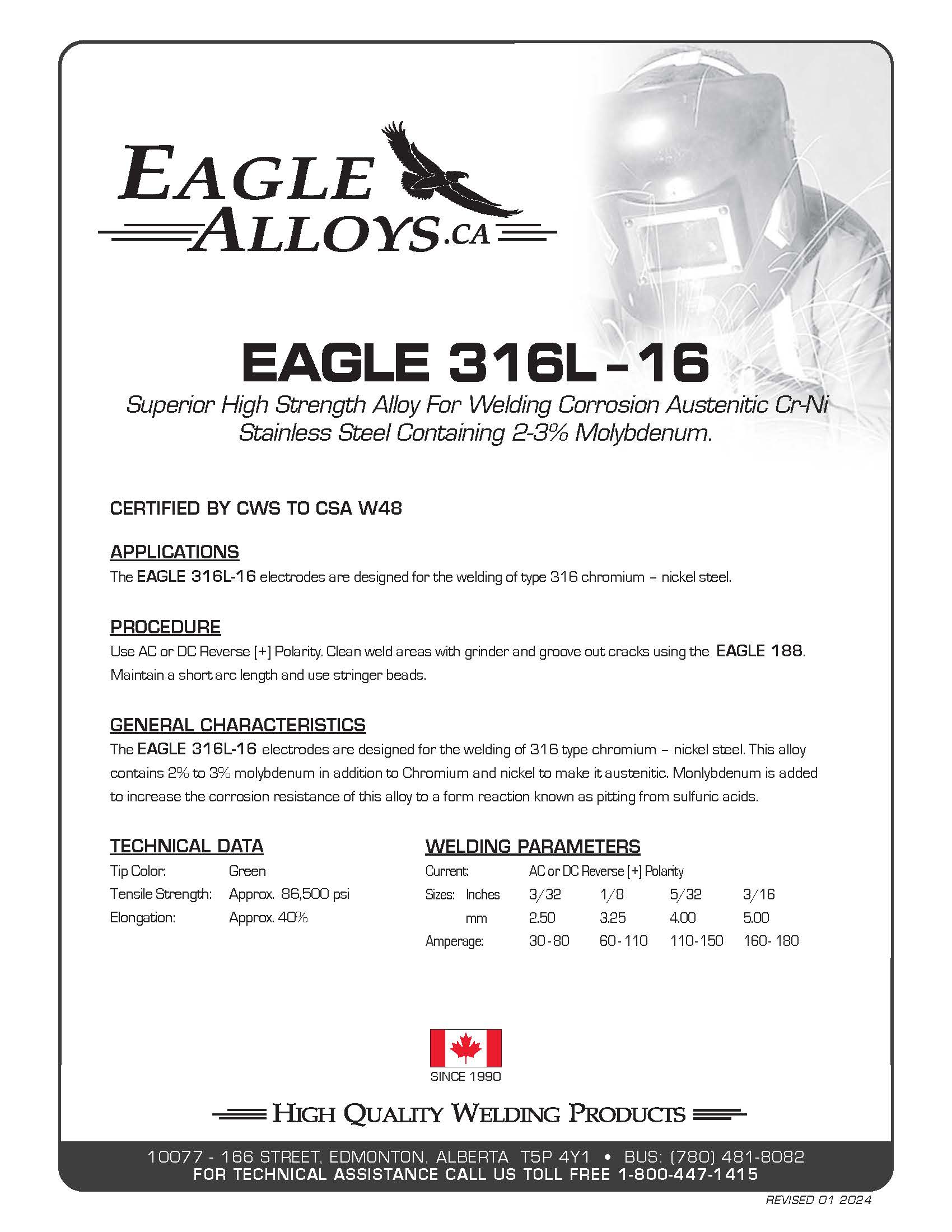

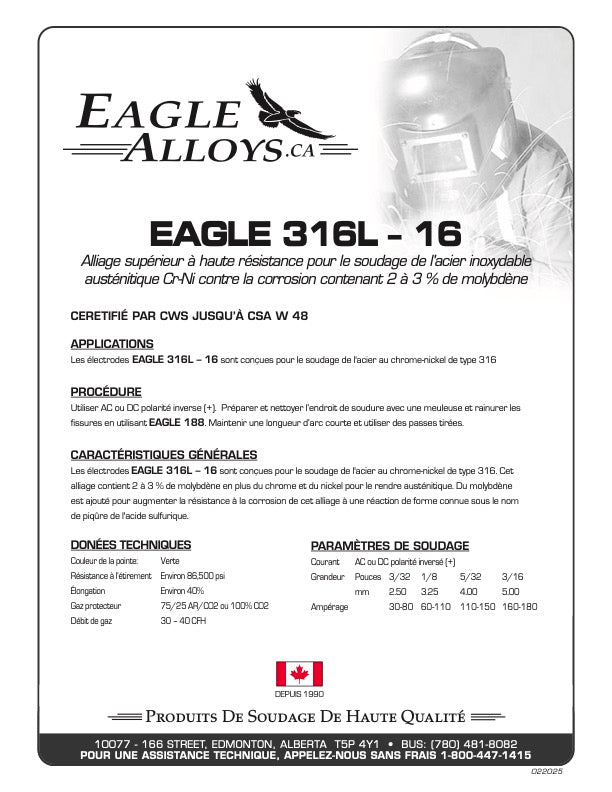

Eagle 316 L-16 Specification Sheet

APPLICATIONS APPLICATIONS

The EAGLE 316L-16 electrodes are designed for the welding of type 316 chromium – nickel steel.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Clean weld areas with grinder and groove out cracks using the EAGLE 188. Maintain a short arc length and use stringer beads.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 316L-16 electrodes are designed for the welding of 316 type chromium – nickel steel. This alloy contains 2% to 3% molybdenum in addition to Chromium and nickel to make it austenitic. Molybdenum is added to increase the corrosion resistance of this alloy to a form reaction known as pitting from sulfuric acids.

TECHNICAL DATA TECHNICAL DATA

Tip Color: Green

Tensile Strength: Approx. 86,500 psi

Elongation: Approx. 40%

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes:
Inches 3/32, 1/8, 5/32, 3/16
mm 2.50, 3.25, 4.00, 5.00
Amperage: 30-80, 60-110, 110-150, 160- 180
