Name: EAGLE 500 FC
Brand: Eagle Alloys Welding
SKU: 500_FC_120
Price: 116.56 CAD
Availability: InStock

Description Description

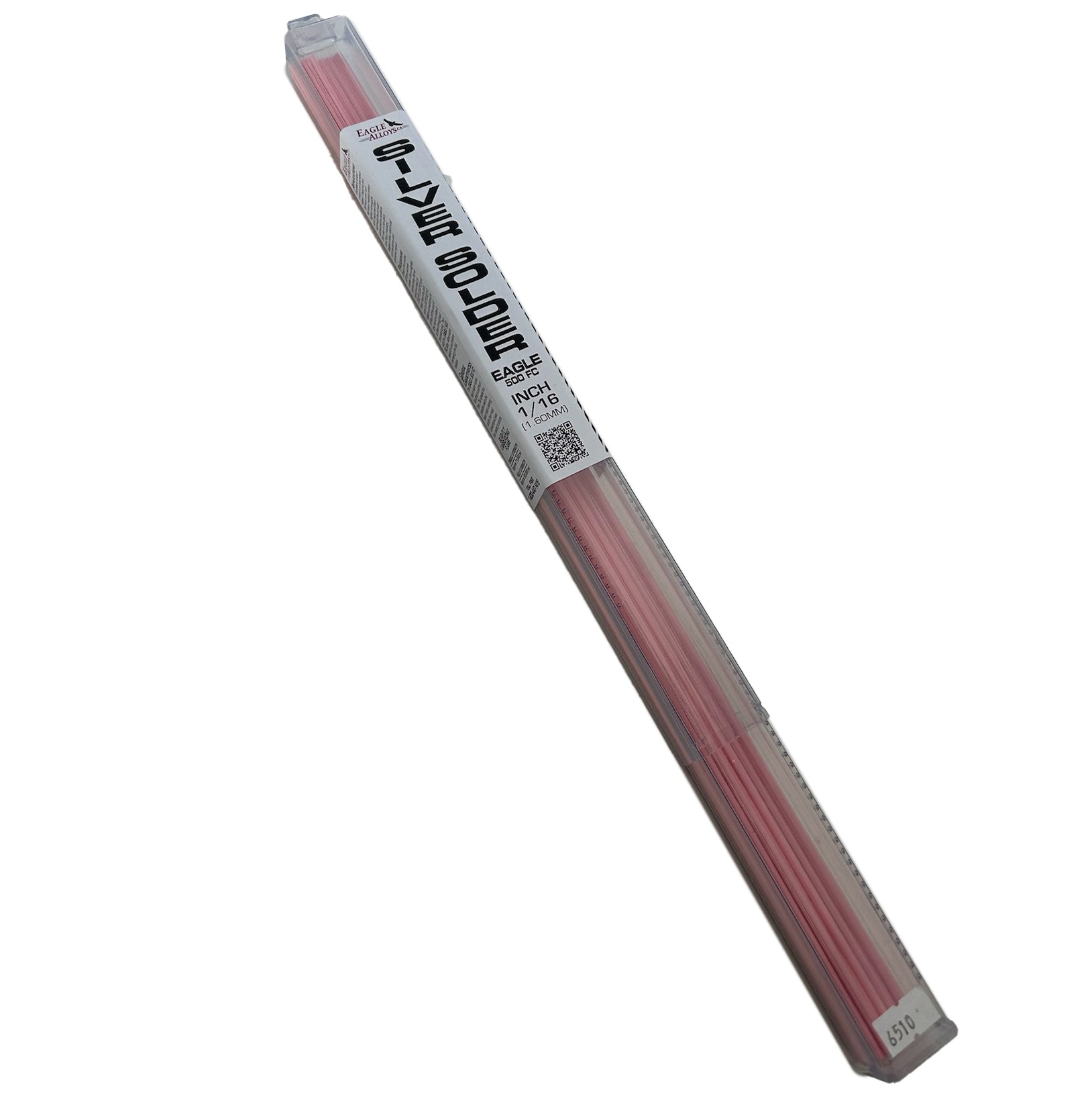

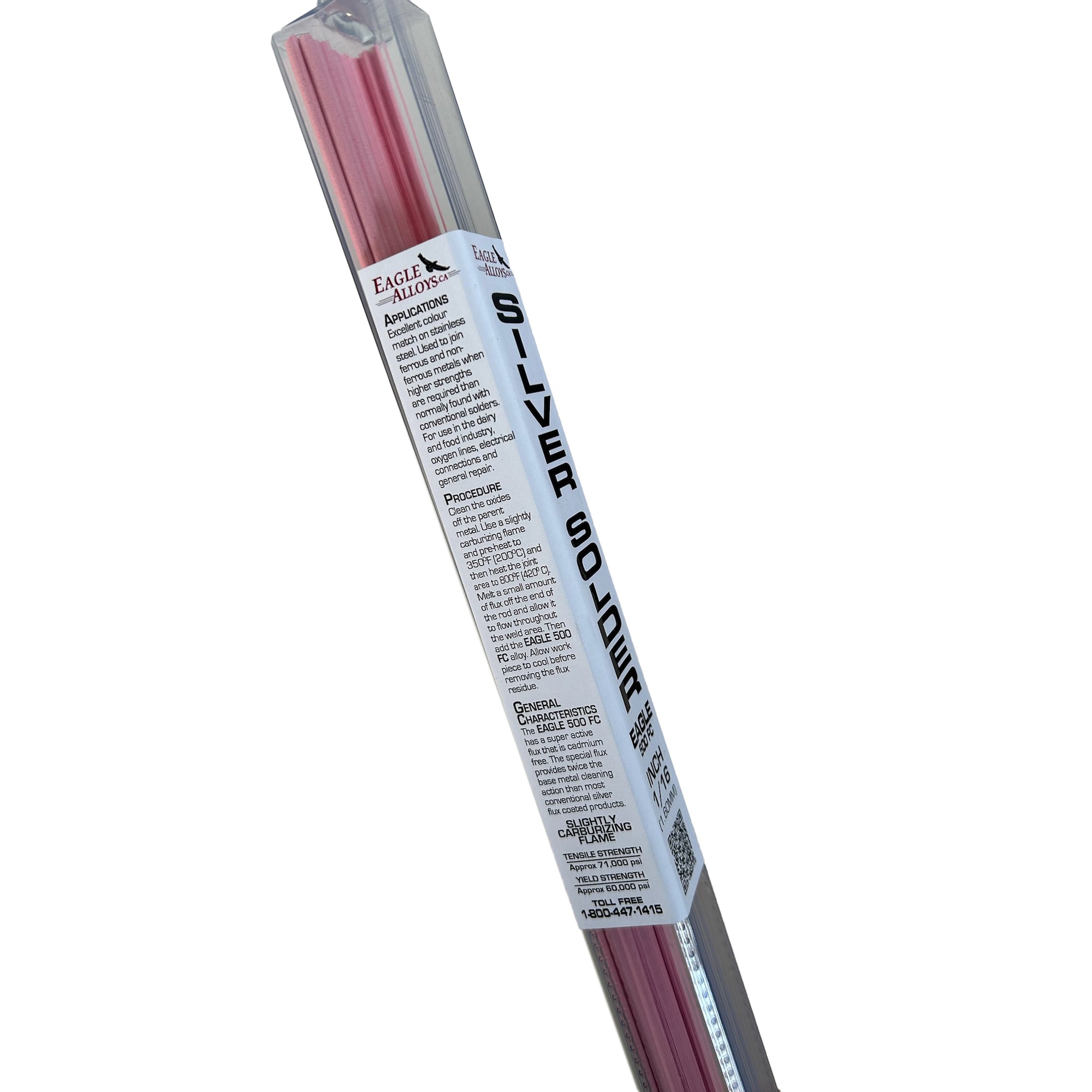

Flexible Flux Coated Cadmium Free Silver Solder

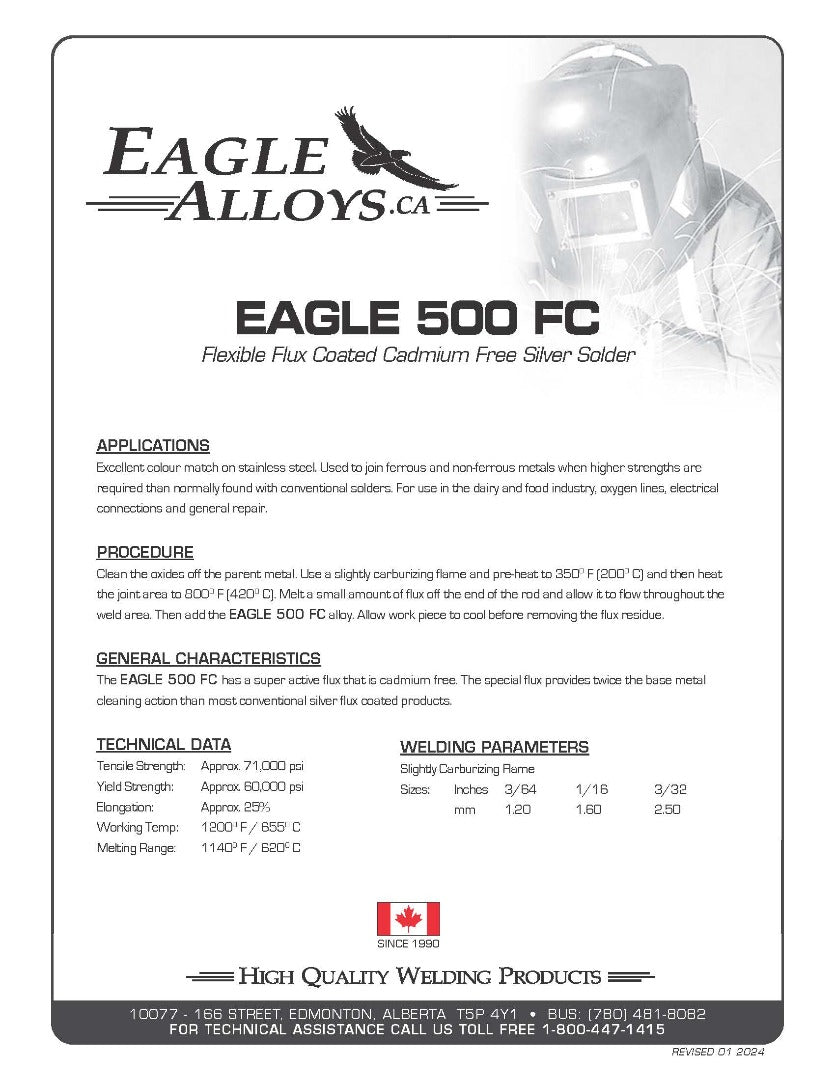

Eagle 500 FC Specification Sheet

Eagle 500FC Safety Data Sheet SDS

APPLICATIONS APPLICATIONS

Excellent colour match on stainless steel. Used to join ferrous and non-ferrous metals when higher strengths are required than normally found with conventional solders. For use in the dairy and food industry, oxygen lines, electrical connections and general repair.

PROCEDURE PROCEDURE

Clean the oxides off the parent metal. Use a slightly carburizing flame and pre-heat to 350° F (200° C) and then heat the joint area to 800° F (420° C). Melt a small amount of flux off the end of the rod and allow it to flow throughout the weld area. Then add the EAGLE 500 FC alloy. Allow work piece to cool before removing the flux residue.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 500 FC has a super active flux that is cadmium free. The special flux provides twice the base metal cleaning action than most conventional silver flux coated products.

TECHNICAL DATA TECHNICAL DATA

Tensile Strength: Approx. 71,000 psi

Yield Strength: Approx. 60,000 psi

Elongation: Approx. 25%

Working Temp: 1200℉/ 655℃

Melting Range: 1140℉ / 620℃

WELDING PARAMETERS WELDING PARAMETERS

Slightly Carburizing Flame
Sizes:
Inches 3/64 1/16 3/32
mm 1.20 1.60 2.50
