EAGLE 881 FMG | Superior Gas Shielded Flux Cored All Position Wire For Joining Carbon Steel.

EAGLE 881 FMG | Superior Gas Shielded Flux Cored All Position Wire For Joining Carbon Steel. PDF

EAGLE 881 FMG

Name: EAGLE 881 FMG
Brand: Eagle Alloys Welding
SKU: 881_FMG
Price: 358.5 CAD
Availability: InStock

$358.50 CAD

Size 0.045"

0.045" 1/16"

Weight

33 LB (15 KG) Spool

Free Shipping to Canada

Description Description

with Ar-20/25%CO2

Superior 1% Nickel, Gas Shielded Flux Cored, All Position H4 Wire For Joining Carbon Steel.

CONFORMS TO:AWS A5.36

:E8ITI/T9-M2IA4-NiI-H4

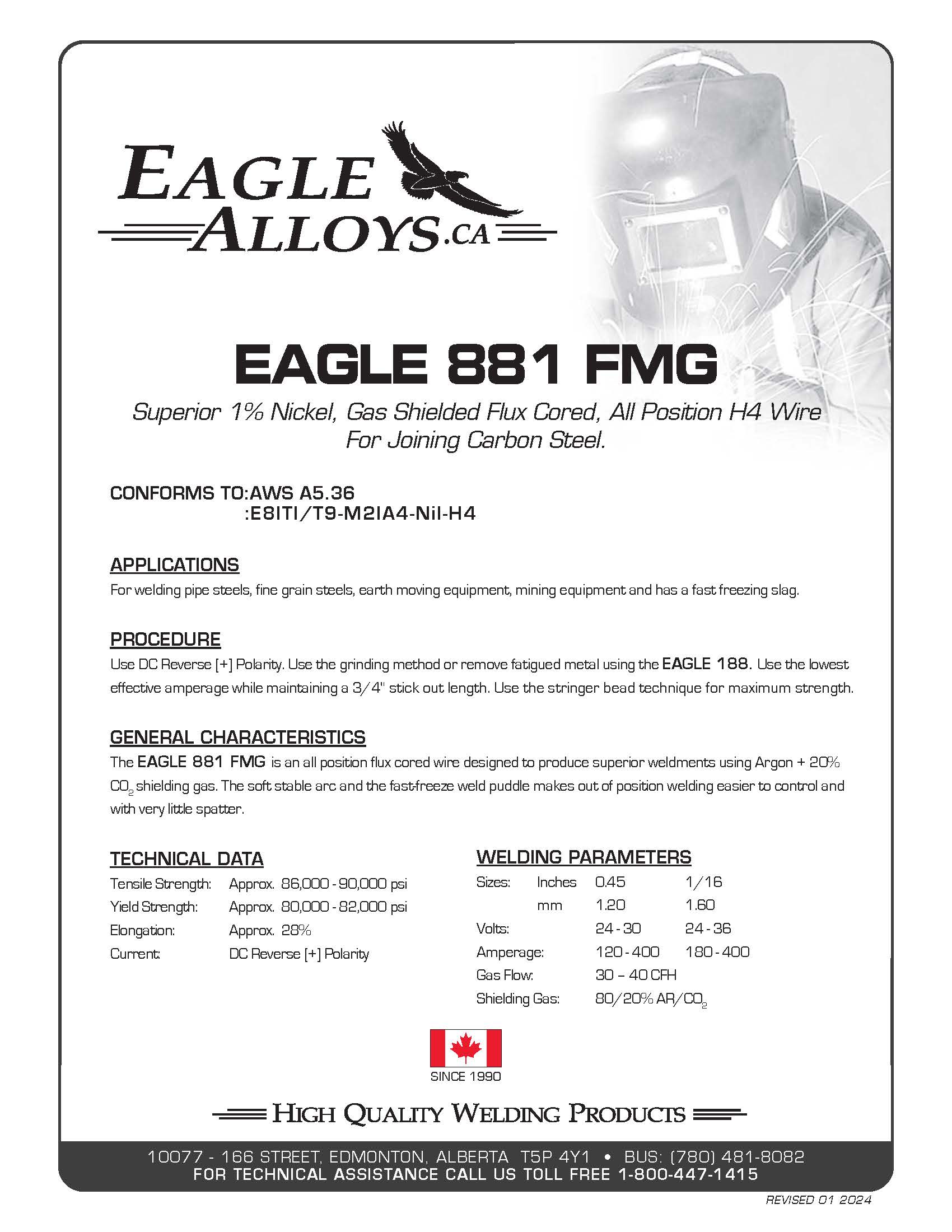

Eagle 881 FMG Specification Sheet

Eagle 881 FMG Safety Data Sheet SDS

Eagle 881 FMG SDS Data Sheet (French)

APPLICATIONS APPLICATIONS

For welding pipe steels, fine grain steels, earth moving equipment, mining equipment and has a fast freezing slag.

PROCEDURE PROCEDURE

Use DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use the lowest
effective amperage while maintaining a 3/4" stick out length. Use the stringer bead technique for maximum strength.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 881 FMG is an all position flux cored wire designed to produce superior weldments using Argon + 20% C0₂ shielding gas. The soft stable arc and the fast-freeze weld puddle makes out of position welding easier to control and with very little spatter.

TECHNICAL DATA TECHNICAL DATA

Tensile Strength: Approx. 86,000 - 90,000 psi

Yield Strength: Approx. 80,000 - 82,000 psi

Elongation: Approx. 28%

Current: DC Reverse [+] Polarity

WELDING PARAMETERS WELDING PARAMETERS

Sizes: Inches 0.45, 1/16
mm 1.20, 1.60
Volts: 24 - 30 ,24 - 36
Amperage: 120 - 400, 180 - 400
Gas Flow: 30 – 40 CFH
Shielding Gas: 80/20% AR/CO₂
