EAGLE 771 FGS | Gas shielded flux cored all position wire for joining carbon steel.

EAGLE 771 FGS | Gas shielded flux cored all position wire for joining carbon steel. PDF

EAGLE 771 FGS

Name: EAGLE 771 FGS
Brand: Eagle Alloys Welding
SKU: 771_FGS_120_33
Price: 607.17 CAD
Availability: InStock

$607.17 CAD

Size .045

.045 1/16"

Weight

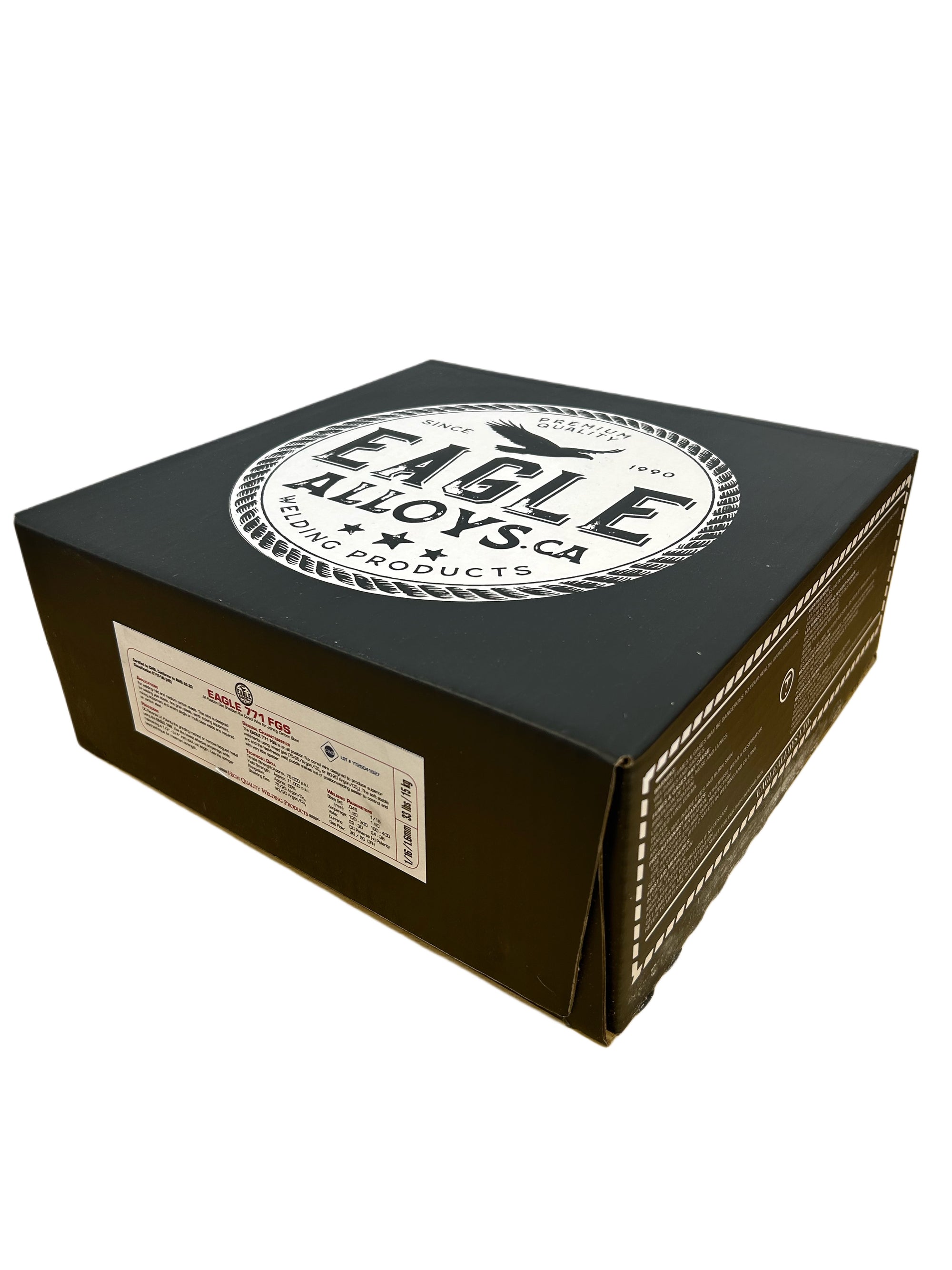

33 LB (15 KG) Spool

Free Shipping to Canada

Description Description

with C1 and M21

Gas Shielded Flux Cored All Position Wire For Joining Carbon Steel.

CONFORMS TO AWS W48–18

CERTIFIED BY CWB E49IT–9M–H8

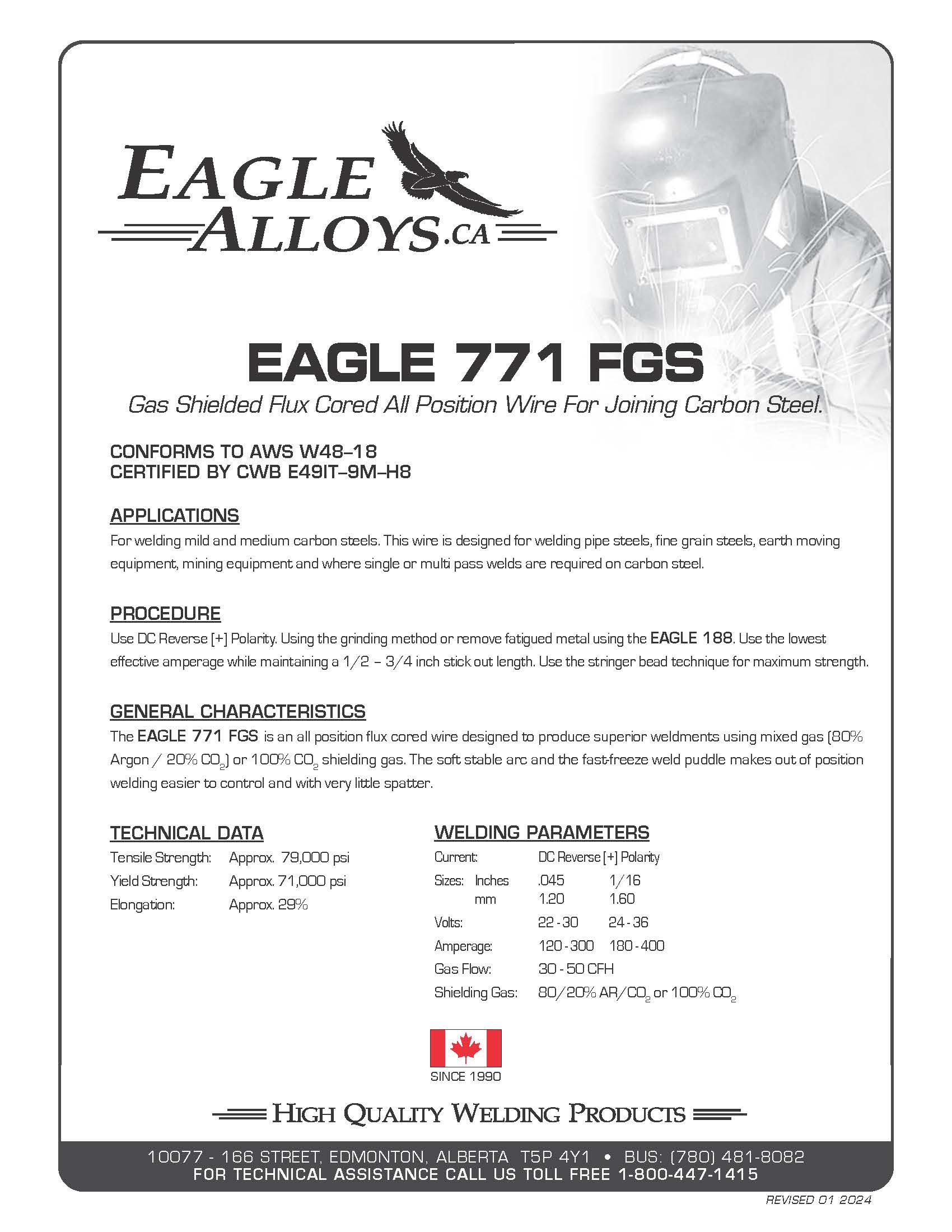

Eagle 771 FGS Specification Sheet

Eagle 771 FGS Safety Data Sheet SDS

Eagle 771 FGS SDS

APPLICATIONS APPLICATIONS

For welding mild and medium carbon steels. This wire is designed for welding pipe steels, fine grain steels, earth moving equipment, mining equipment and where single or multi pass welds are required on carbon steel.

PROCEDURE PROCEDURE

Use DC Reverse [+] Polarity. Using the grinding method or remove fatigued metal using the EAGLE 188. Use the lowest effective amperage while maintaining a 1/2 – 3/4 inch stick out length. Use the stringer bead technique for maximum strength.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 771 FGS is an all position flux cored wire designed to produce superior weldments using mixed gas (80% Argon / 20% CO₂) or 100% CO₂ shielding gas. The soft stable arc and the fast-freeze weld puddle makes out of position welding easier to control and with very little spatter.

TECHNICAL DATA TECHNICAL DATA

Tensile Strength: Approx. 79,000 psi

Yield Strength: Approx. 71,000 psi

Elongation: Approx. 29%

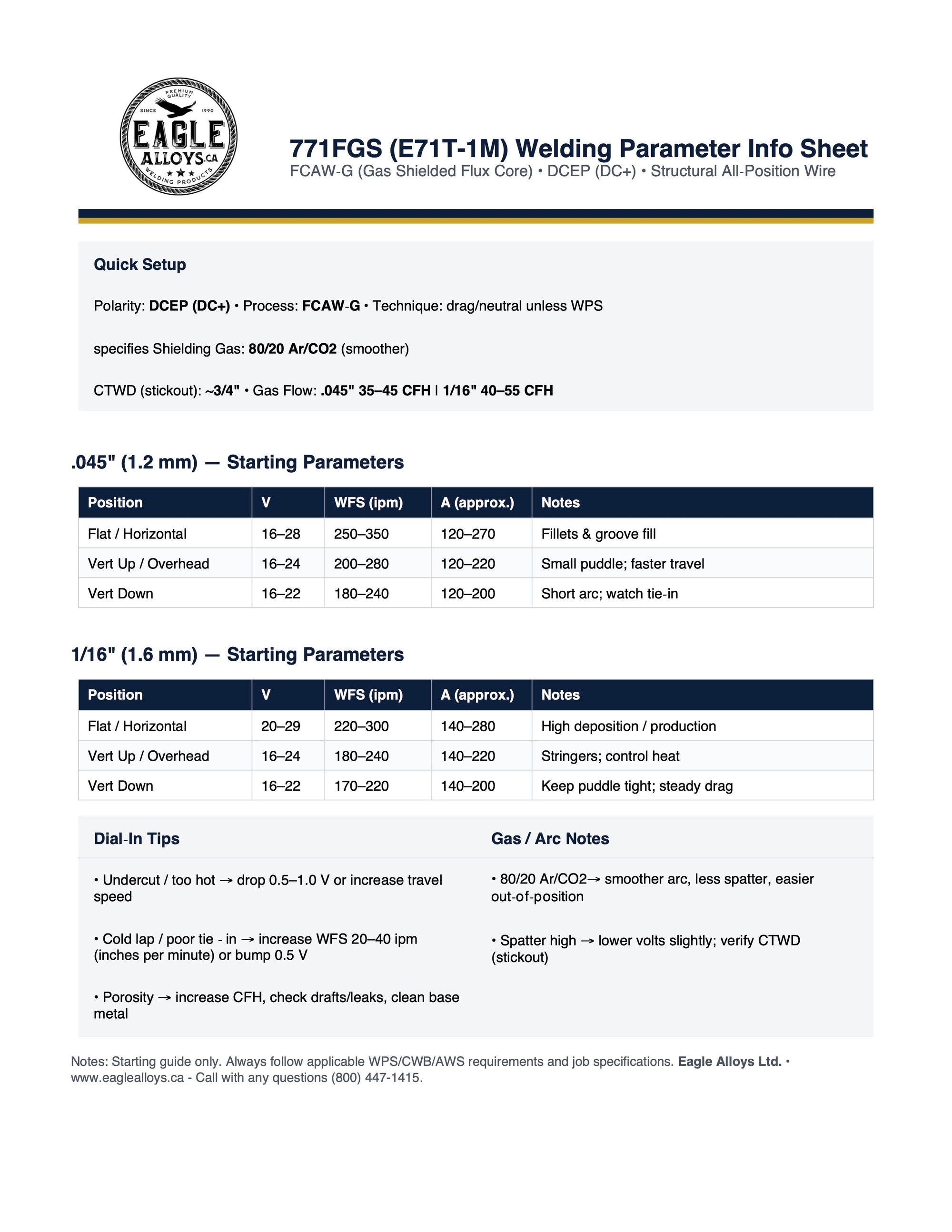

WELDING PARAMETERS WELDING PARAMETERS

Current: DC Reverse [+] Polarity
Sizes: Inches .045, 1/16
mm 1.20, 1.60
Volts: 22 - 30, 24 - 36
Amperage: 120 - 300, 180 - 400
Gas Flow: 30 - 50 CFH
Shielding Gas: 80/20% AR/CO₂ or 100% CO₂
