EAGLE 771-11 | All Position Self Shielded Flux Cored Wire

EAGLE 771-11 | All Position Self Shielded Flux Cored Wire PDF

EAGLE 771-11

Name: EAGLE 771-11
Brand: Eagle Alloys Welding
SKU: 771-11_120_33
Price: 618.39 CAD
Availability: InStock

$618.39 CAD

Size .045

.045 1/16"

Weight

33 LB (15 KG) Spool

Free Shipping to Canada

Description Description

All Position Self Shielded Flux Cored Wire

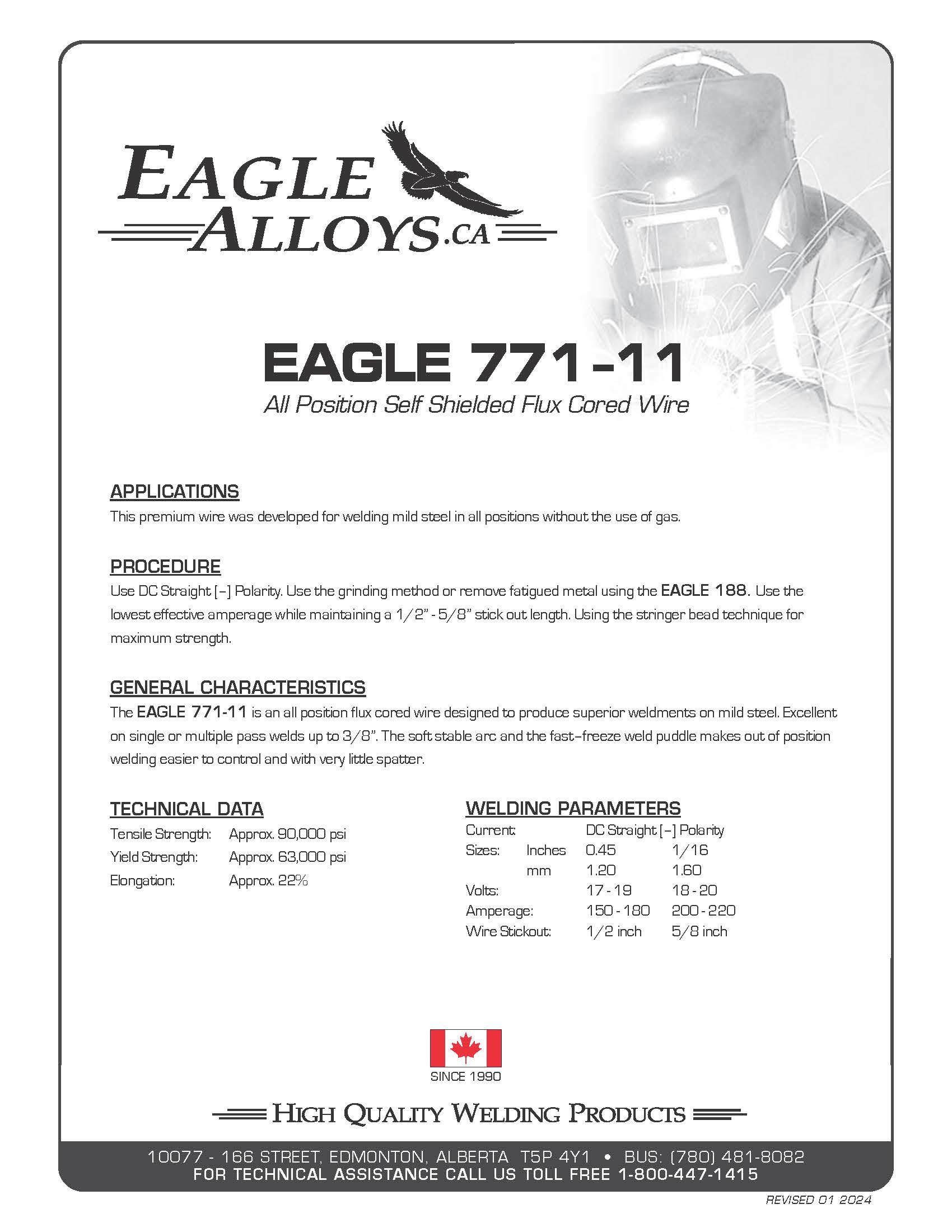

Eagle 771-11 Specification Sheet

Eagle 771-11 Safety Data Sheet SDS

APPLICATIONS APPLICATIONS

This premium wire was developed for welding mild steel in all positions without the use of gas.

PROCEDURE PROCEDURE

Use DC Straight [–] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use the lowest effective amperage while maintaining a 1/2” - 5/8” stick out length. Using the stringer bead technique for maximum strength.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 771-11 is an all position flux cored wire designed to produce superior weldments on mild steel. Excellent on single or multiple pass welds up to 3/8”. The soft stable arc and the fast–freeze weld puddle makes out of position welding easier to control and with very little spatter.

TECHNICAL DATA TECHNICAL DATA

Tensile Strength: Approx. 90,000 psi

Yield Strength: Approx. 63,000 psi

Elongation: Approx. 22%

WELDING PARAMETERS WELDING PARAMETERS

Current: DC Straight [–] Polarity
Sizes: Inches 0.45 1/16
mm 1.20 1.60
Volts: 17 - 19 18 - 20
Amperage: 150 - 180 200 - 220
Wire Stickout: 1/2 inch 5/8 inch
