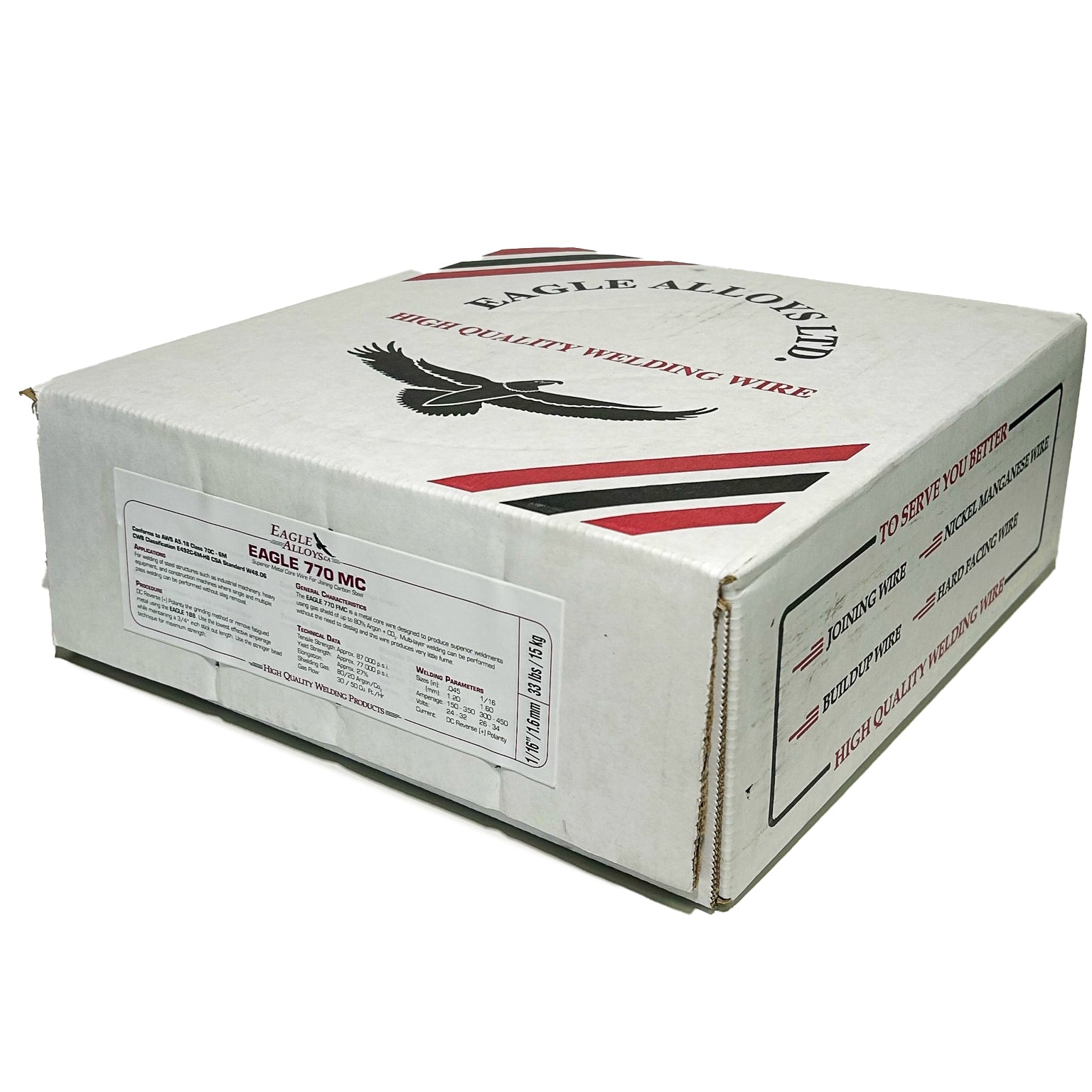

Eagle 770 MC

Name: Eagle 770 MC
Brand: Eagle Alloys Welding
SKU: EA_770-MC_120_33
Price: 632.25 CAD
Availability: InStock

$632.25 CAD

Size .045

.045 1/16"

Weight

Free Shipping within Canada

Description Description

Superior Metal Type Core Wire for Joining Carbon Steel

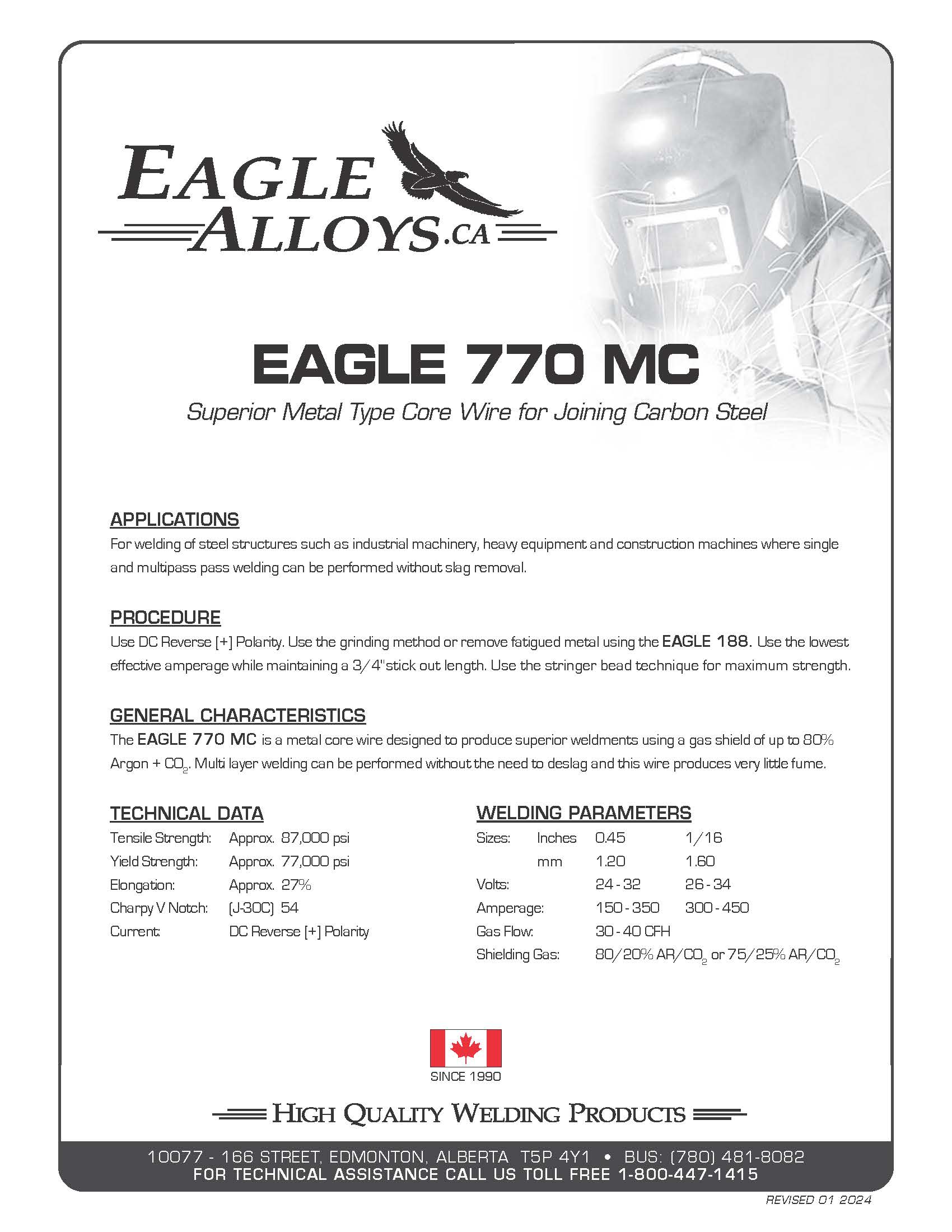

Eagle 770 MC Specification Sheet

Eagle 770 MC Safety Data Sheet SDS

APPLICATIONS APPLICATIONS

For welding of steel structures such as industrial machinery, heavy equipment and construction machines where single and multipass pass welding can be performed without slag removal.

PROCEDURE PROCEDURE

Use DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use the lowest effective amperage while maintaining a 3/4" stick out length. Use the stringer bead technique for maximum strength.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 770 MC is a metal core wire designed to produce superior weldments using a gas shield of up to 80% Argon + CO₂. Multi layer welding can be performed without the need to deslag and this wire produces very little fume.

TECHNICAL DATA TECHNICAL DATA

Tensile Strength: Approx. 87,000 psi

Yield Strength: Approx. 77,000 psi

Elongation: Approx. 27%

Charpy V Notch: (J-30C) 54

Current: DC Reverse [+] Polarity

WELDING PARAMETERS WELDING PARAMETERS

Sizes: Inches 0.45, 1/16
mm 1.20, 1.60
Volts: 24 - 32, 26 - 34
Amperage: 150 - 350, 300 - 450
Gas Flow: 30 - 40 CFH
Shielding Gas: 80/20% AR/CO₂ to 75/25% AR/CO₂
