Eagle 564 MC

Name: Eagle 564 MC
Brand: Eagle Alloys Welding
SKU: 564MC
Price: 1209.6 CAD
Availability: InStock

$1,209.60 CAD

Size .045

.045

Weight

33 LB (15 KG) | 12" Spool

Free Shipping within Canada

Description Description

Ultra Superior Gas Shielded Metal Cored Wire For Excellent Metal To Metal Wear

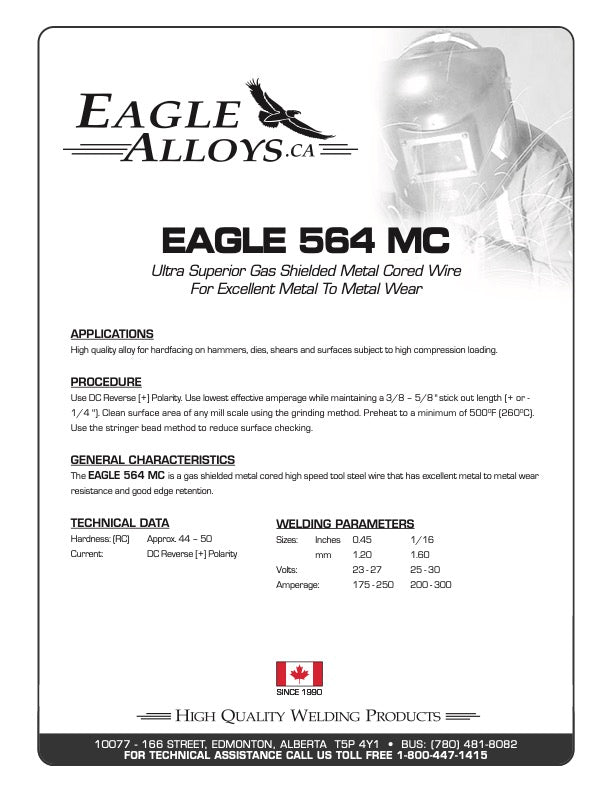

Eagle 564 MC Specification sheet

APPLICATIONS APPLICATIONS

High quality alloy for hardfacing on hammers, dies, shears and surfaces subject to high compression loading.

PROCEDURE PROCEDURE

Use DC Reverse [+] Polarity. Use lowest effective amperage while maintaining a 3/8 – 5/8 " stick out length (+ or - 1/4 "). Clean surface area of any mill scale using the grinding method. Preheat to a minimum of 500℉ (260℃).
Use the stringer bead method to reduce surface checking.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 564 MC is a gas shielded metal cored high speed tool steel wire that has excellent metal to metal wear resistance and good edge retention.

TECHNICAL DATA TECHNICAL DATA

Hardness: (RC) Approx. 44 – 50
Current: DC Reverse [+] Polarity

WELDING PARAMETERS WELDING PARAMETERS
