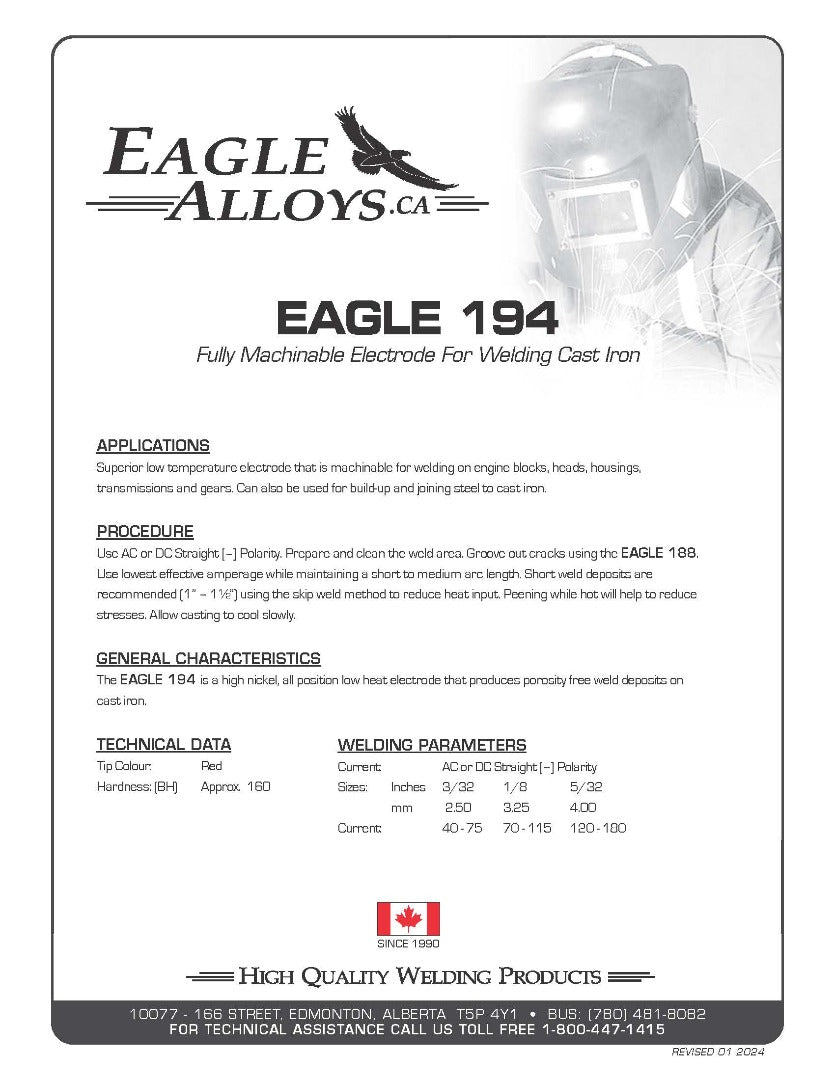

Eagle 194 PDF: Applications, Procedure, General Characteristics, Technical Data, Welding Parameters

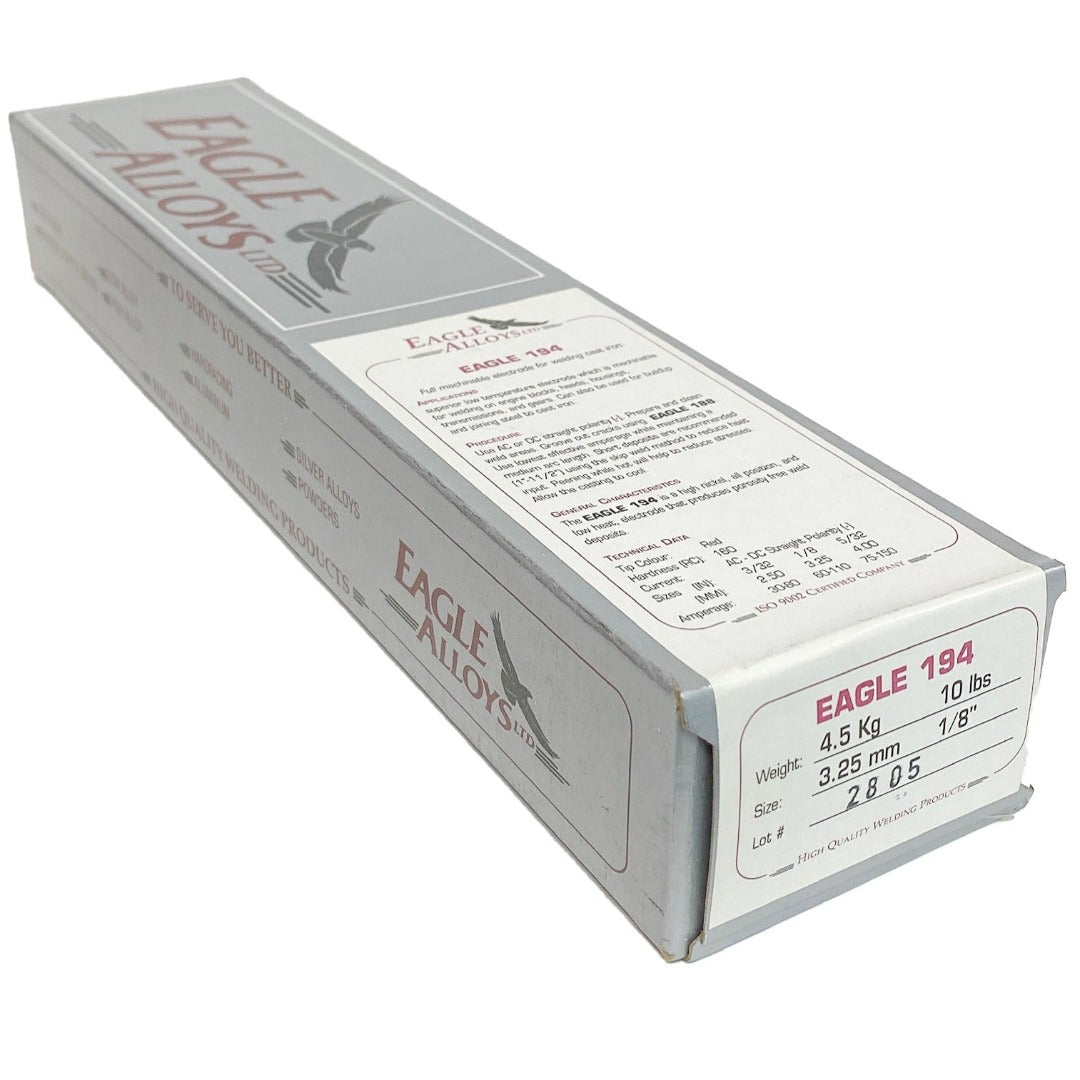

EAGLE 194

Name: EAGLE 194
Brand: Eagle Alloys Welding
SKU: 194_250_1
Price: 221.28 CAD
Availability: InStock

$221.28 CAD

Diameter 3/32"

3/32" 1/8" 5/32"

Size

Free Shipping to Canada

Description Description

Fully Machinable Electrode For Welding Cast Iron

Application Application

Superior low temperature electrode that is machinable for welding on engine blocks, heads, housings, transmissions and gears. Can also be used for build-up and joining steel to cast iron.

Procedure Procedure

Use AC or DC Straight [–] Polarity. Prepare and clean the weld area. Groove out cracks using the EAGLE 188.
Use lowest effective amperage while maintaining a short to medium arc length. Short weld deposits are recommended (1” – 1½”) using the skip weld method to reduce heat input. Peening while hot will help to reduce stresses. Allow casting to cool slowly.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 194 is a high nickel, all position low heat electrode that produces porosity free weld deposits on cast iron.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Red

Hardness: (BH) Approx. 160

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Straight [–] Polarity
Sizes: Inches 3/32, 1/8, 5/32
mm 2.50, 3.25, 4.00
Current: 40 - 75, 70 - 115, 120 - 180
