Eagle 557 FGS

Name: Eagle 557 FGS
Brand: Eagle Alloys Welding
SKU: 557_120
Price: 1447.6 CAD
Availability: InStock

$1,447.60 CAD

Size .045

.045 1/16"

Weight 44 lbs (20 KG)

44 lbs (20 KG)

Free Shipping within Canada

Description Description

Superior Gas Shielded Flux Cored Wire For Heavy Impact And High Abrasion

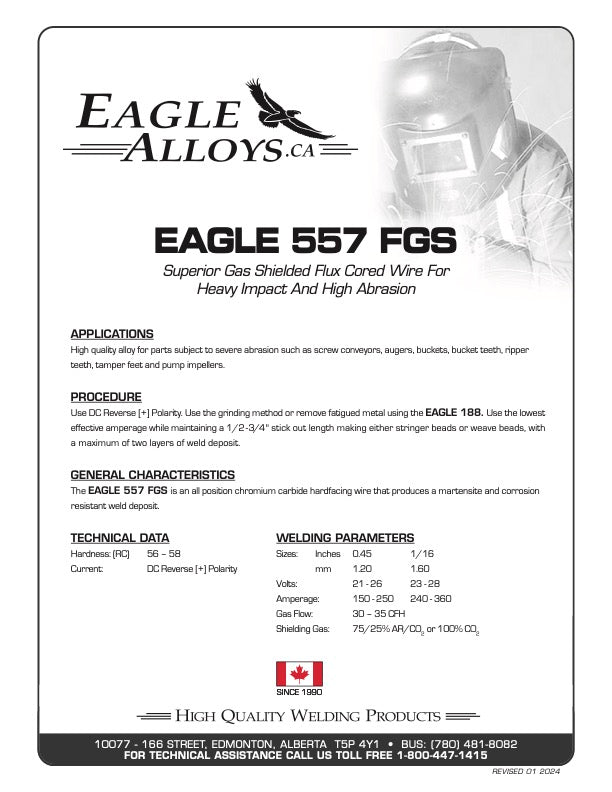

Eagle 557 FGS Specification Sheet

Eagle 557 FGS Safety Data Sheet SDS

Eagle 557 FGS SDS Safety Data Sheet (French)

APPLICATIONS APPLICATIONS

High quality alloy for parts subject to severe abrasion such as screw conveyors, augers, buckets, bucket teeth, ripper
teeth, tamper feet and pump impellers.

PROCEDURE PROCEDURE

Use DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use the lowest
effective amperage while maintaining a 1/2 - 3/4" stick out length making either stringer beads or weave beads, with
a maximum of two layers of weld deposit.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 557 FGS is an all position chromium carbide hardfacing wire that produces a martensite and corrosion
resistant weld deposit.

TECHNICAL DATA TECHNICAL DATA

Hardness: (RC) 56 – 58
Current: DC Reverse [+] Polarity

WELDING PARAMETERS WELDING PARAMETERS

Sizes: Inches 0.45, 1/16
mm 1.20, 1.60
Volts: 21 - 26, 23 - 28
Amperage: 150 - 250, 240 - 360
Gas Flow: 30 – 35 CFH
Shielding Gas: 75/25% AR/CO₂ or 100% CO₂
