Eagle 530 FGS

Name: Eagle 530 FGS
Brand: Eagle Alloys Welding
SKU: 530-FGS_120_44
Price: 1244.4 CAD
Availability: InStock

$1,244.40 CAD

Size 0.045"

0.045" 1/16"

Weight

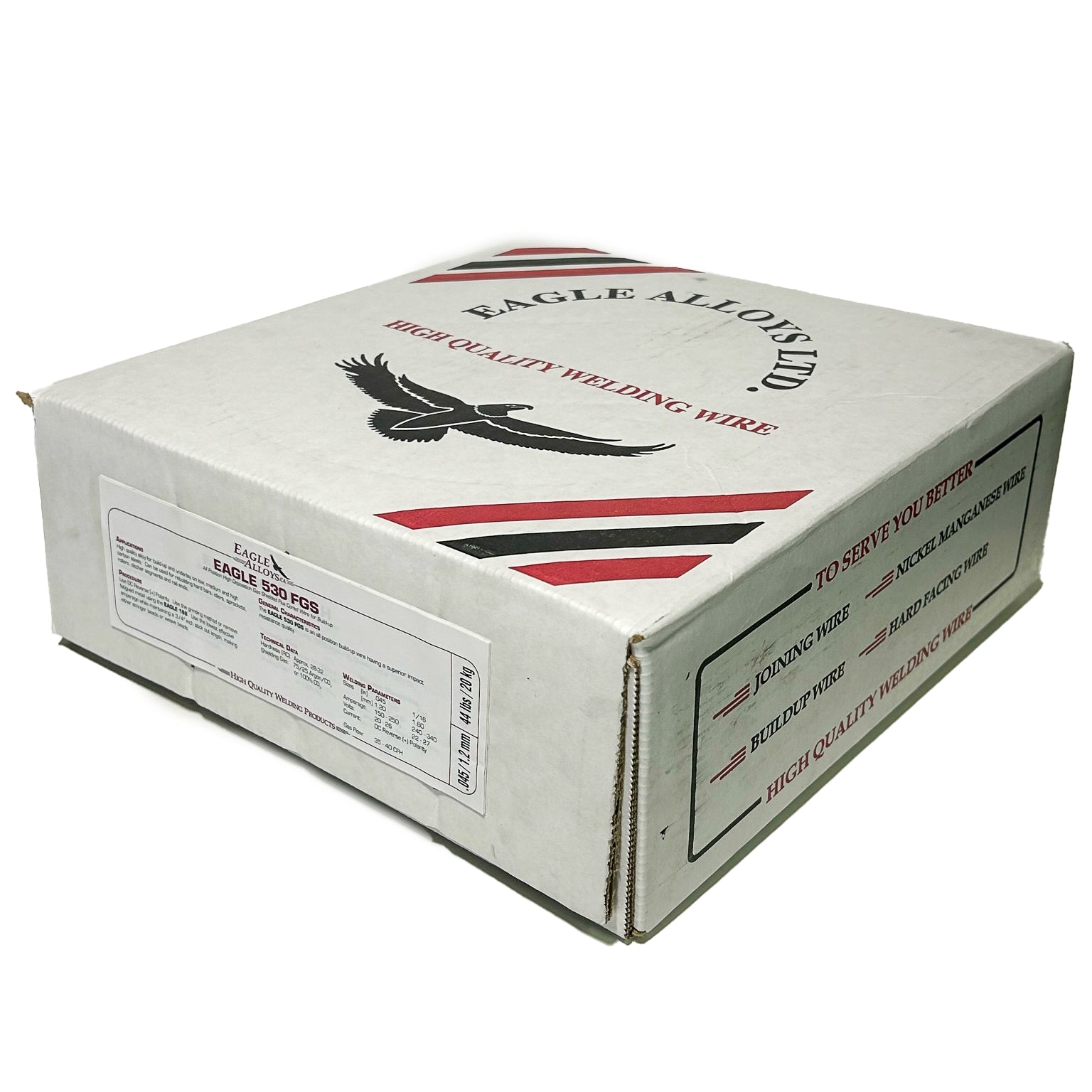

44 LB (20 KG) Spool

Free Shipping within Canada

Description Description

All Positions, High Deposition, Machinable, Gas Shielded Flux Cored Wire For Build-Up

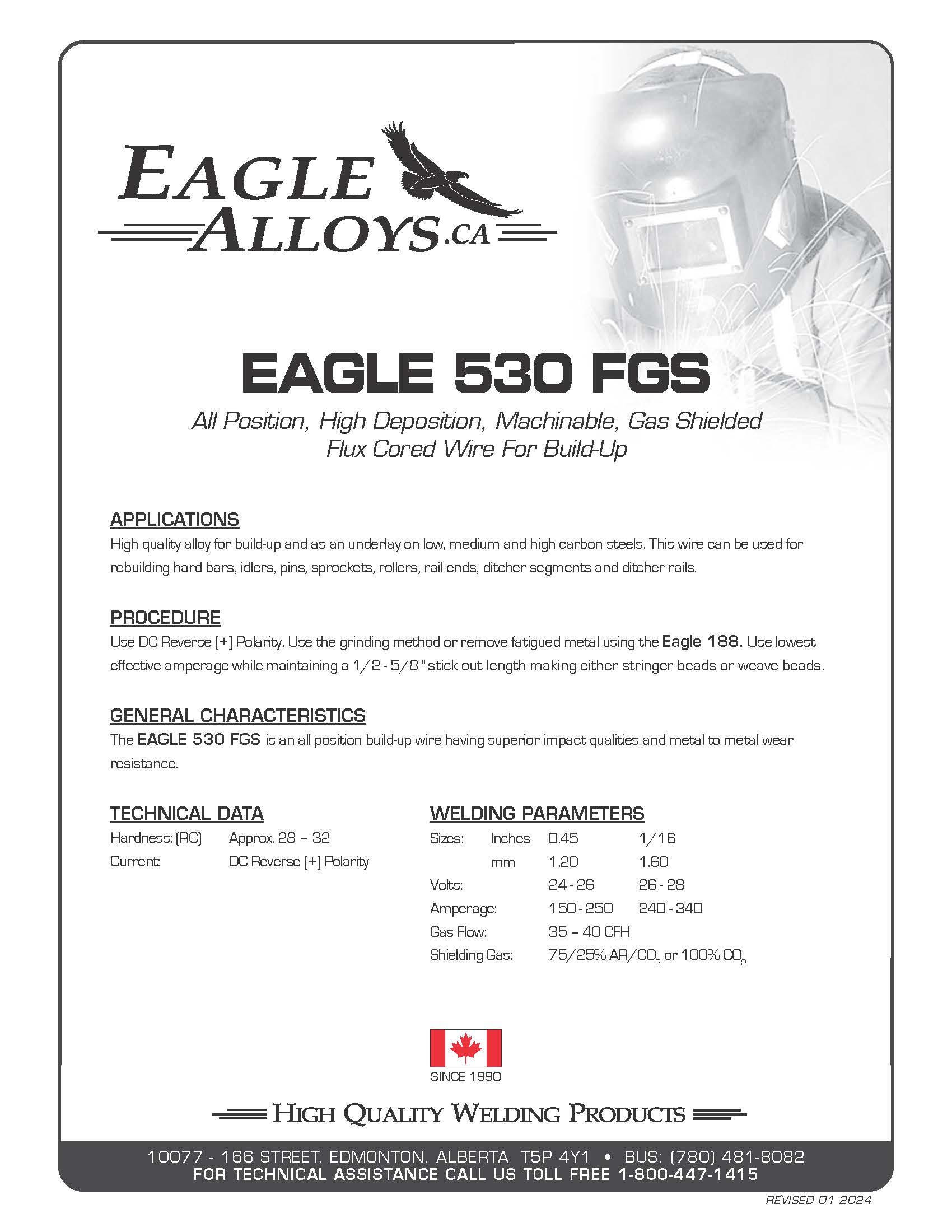

Eagle 530 FGS Specification Sheet

Eagle 530 FGS Safety Data Sheet SDS

APPLICATIONS APPLICATIONS

High quality alloy for build-up and as an underlay on low, medium and high carbon steels. This wire can be used for rebuilding hard bars, idlers, pins, sprockets, rollers, rail ends, ditcher segments and ditcher rails.

PROCEDURE PROCEDURE

Use DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the Eagle 188. Use lowest effective amperage while maintaining a 1/2 - 5/8 " stick out length making either stringer beads or weave beads.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 530 FGS is an all position build-up wire having superior impact qualities and metal to metal wear resistance.

TECHNICAL DATA TECHNICAL DATA

Hardness: (RC) Approx. 28 – 32

Current: DC Reverse [+] Polarity

WELDING PARAMETERS WELDING PARAMETERS

Sizes:
Inches 0.45, 1/16
mm 1.20, 1.60
Volts: 24-26, 26-28
Amperage: 150 - 250, 240 - 340
Gas Flow: 35 – 40 CFH
Shielding Gas:
75/25% AR/CO₂ or 100% CO₂
