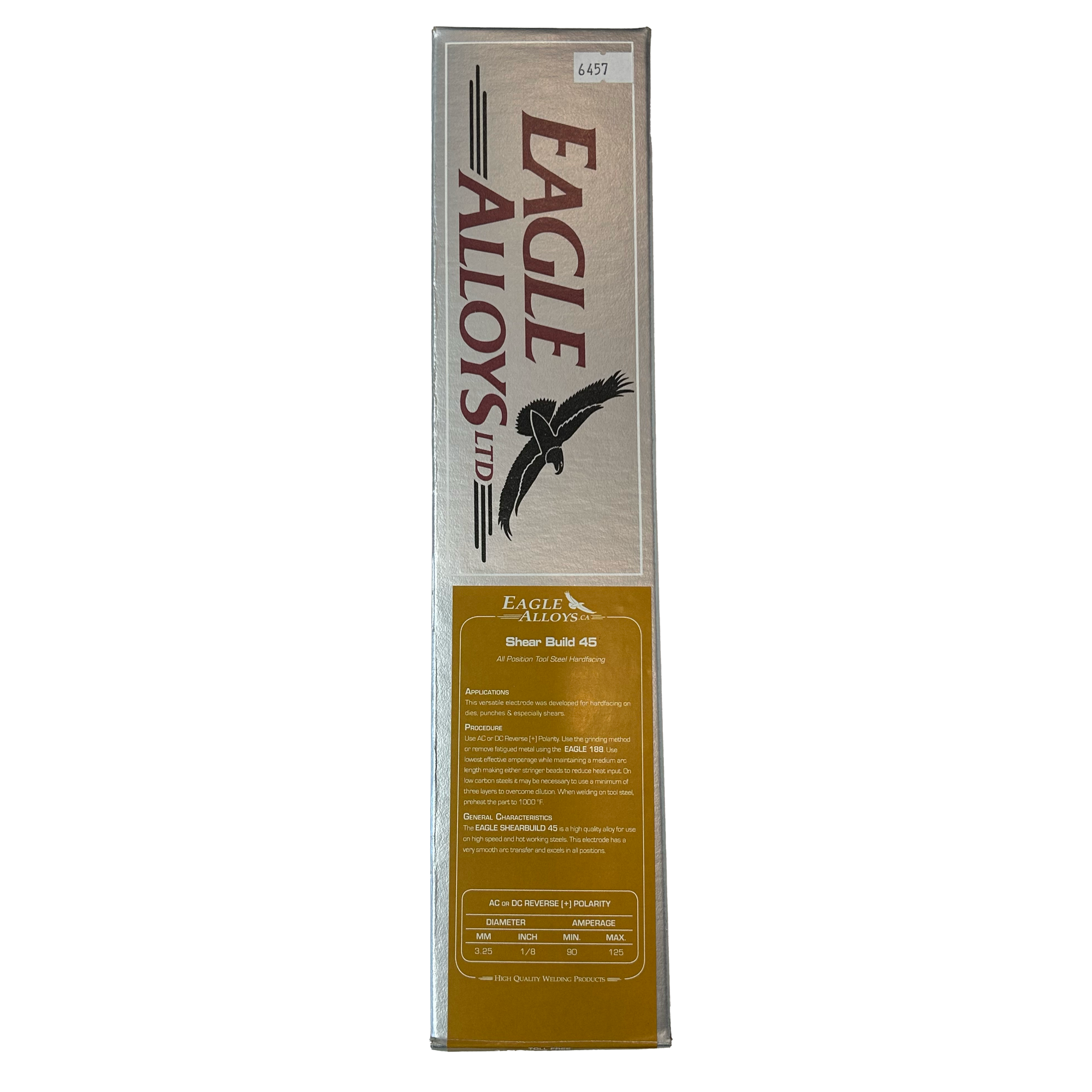

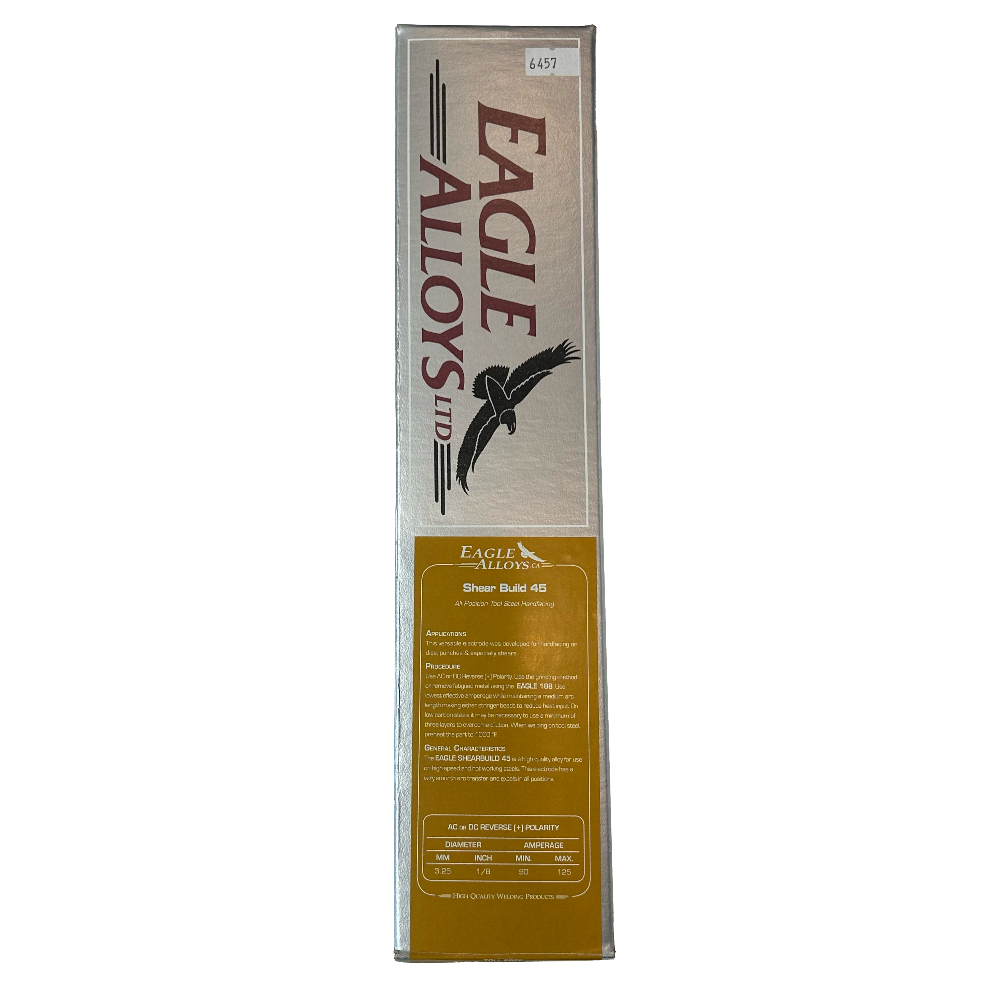

EAGLE SHEARBUILD 45 All Position Tool Steel Hardfacing

EAGLE SHEARBUILD 45 All Position Tool Steel Hardfacing PDF

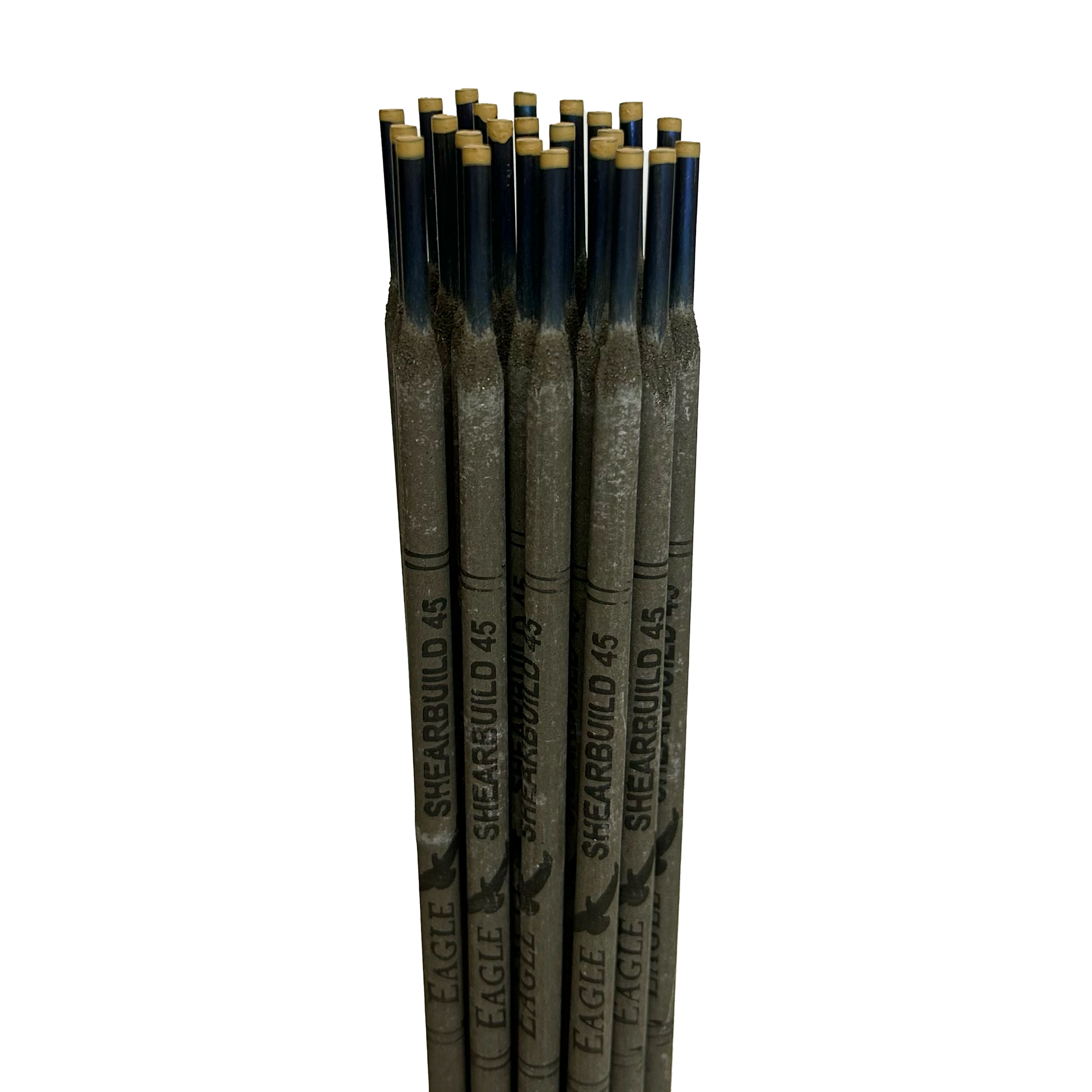

Eagle Shearbuild 45

Name: Eagle Shearbuild 45
Brand: Eagle Alloys Welding
SKU: EASH45_325
Price: 225.57 CAD
Availability: InStock

$225.57 CAD

Size

Diameter 1/8

1/8 5/32

Free Shipping within Canada

Description Description

All Position Tool Steel Hardfacing

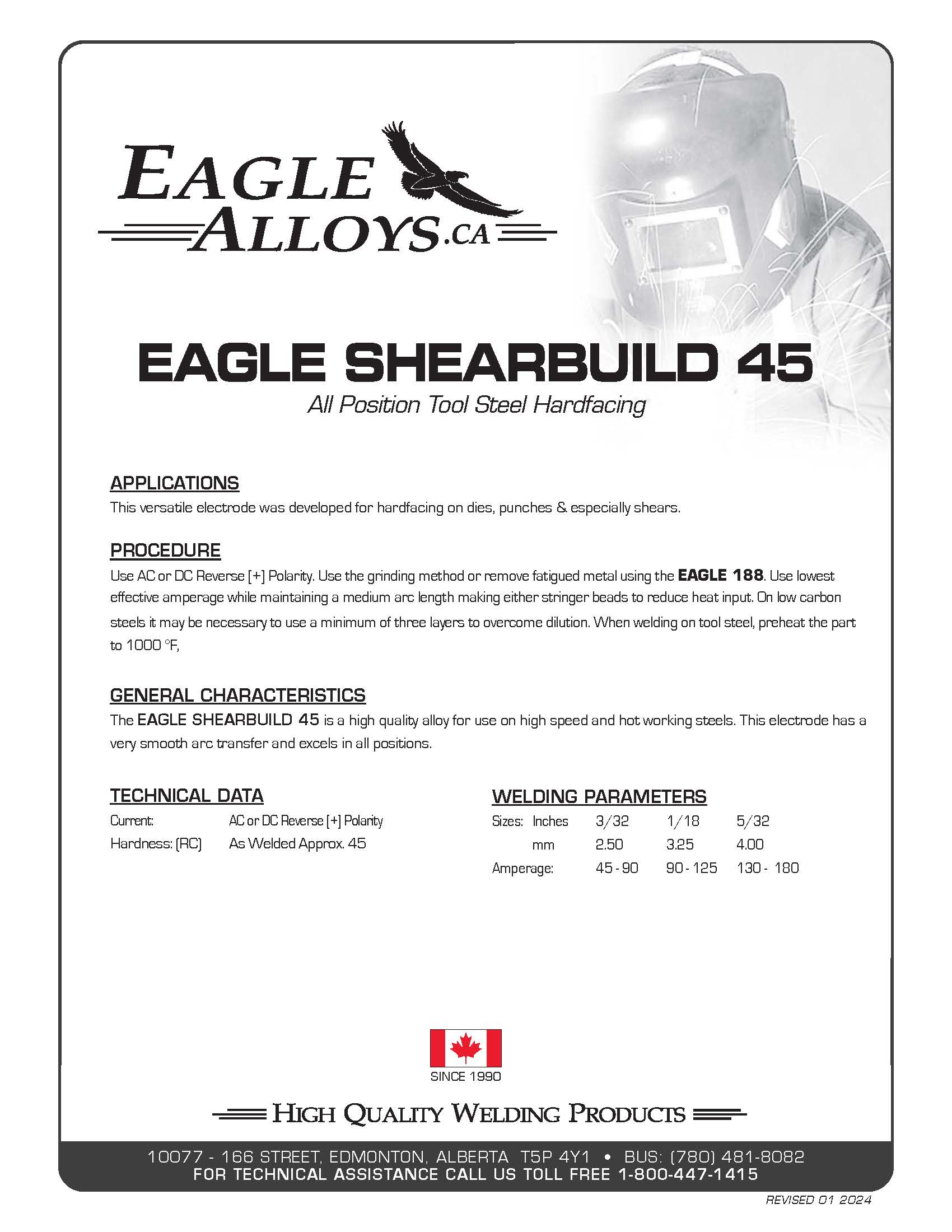

Eagle Shearbuild 45 Specification Sheet

APPLICATIONS APPLICATIONS

This versatile electrode was developed for hardfacing on dies, punches & especially shears.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use lowest effective amperage while maintaining a medium arc length making either stringer beads to reduce heat input. On low carbon steels it may be necessary to use a minimum of three layers to overcome dilution. When welding on tool steel, preheat the part to 1000 °F

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE SHEARBUILD 45 is a high quality alloy for use on high speed and hot working steels. This electrode has a very smooth arc transfer and excels in all positions.

TECHNICAL DATA TECHNICAL DATA

Current: AC or DC Reverse [+] Polarity
Hardness: (RC) As Welded Approx. 45

WELDING PARAMETERS WELDING PARAMETERS

Sizes: Inches 3/32, 1/18, 5/32
mm 2.50, 3.25, 4.00
Amperage: 45 - 90, 90 - 125, 130 - 180
