EAGLE 673 Hadfacing For Extreme Abrasion At High Temperature

EAGLE 673 Hadfacing For Extreme Abrasion At High Temperature PDF

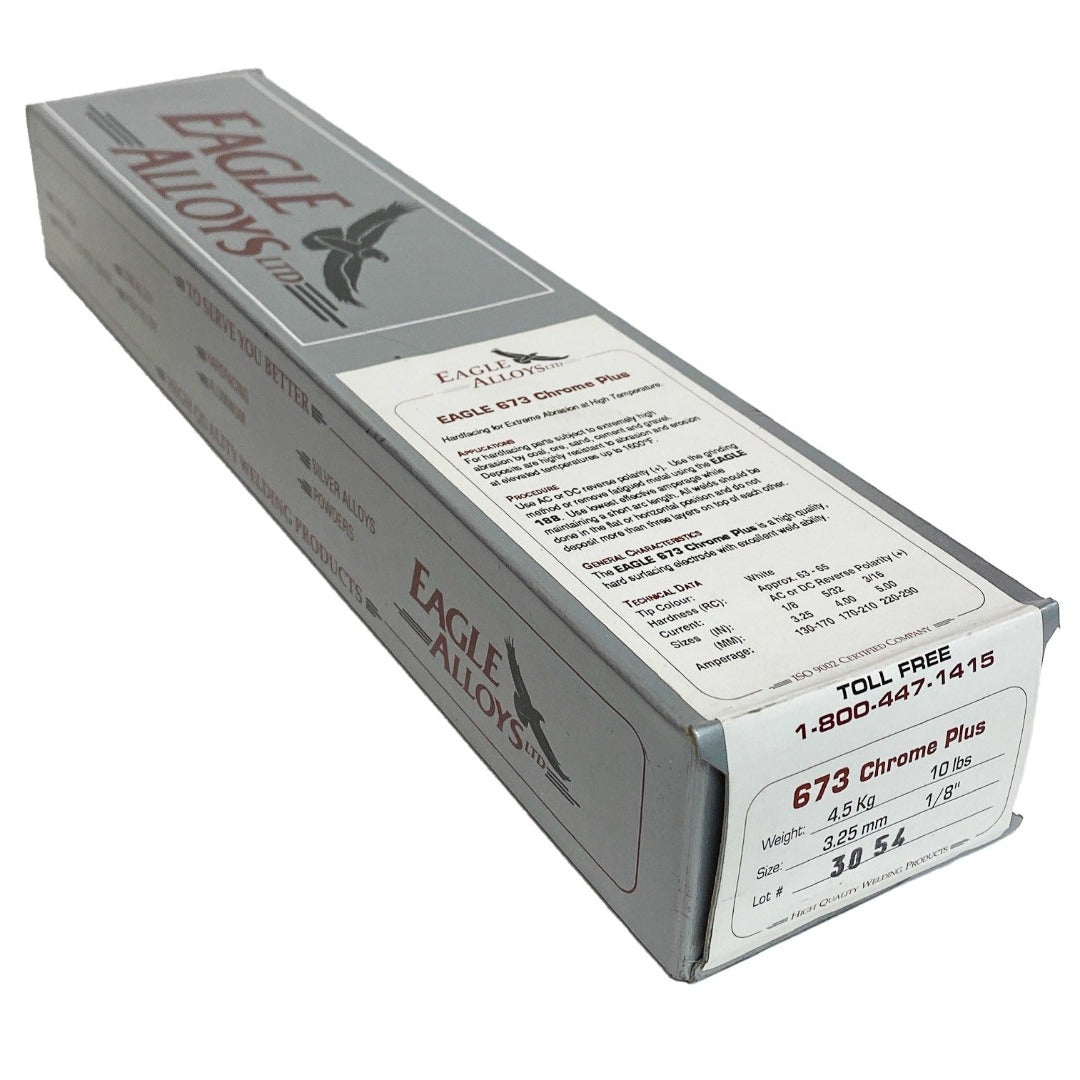

EAGLE 673

Name: EAGLE 673
Brand: Eagle Alloys Welding
SKU: 673_3.25_1
Price: 114.68 CAD
Availability: InStock

$114.68 CAD

Diameter 1/8"

1/8" 5/32" 3/16"

Size

Free Shipping within Canada

Description Description

Hardfacing For Extreme Abrasion At High Temperature

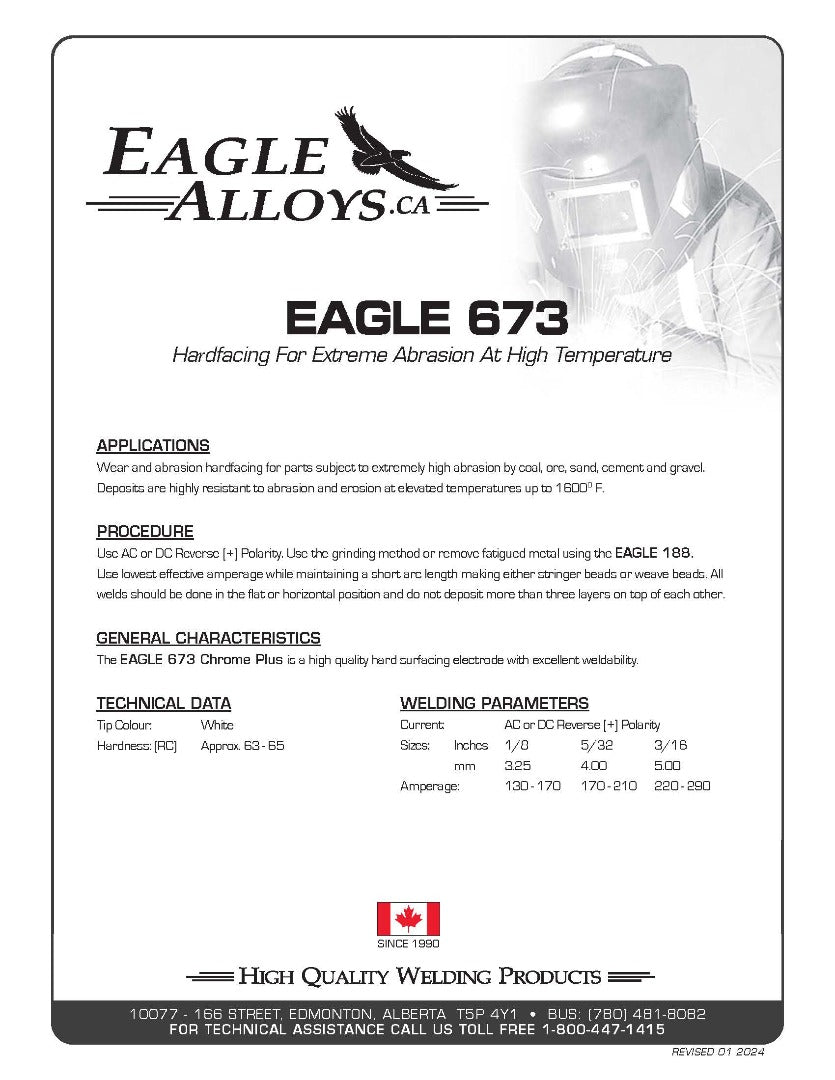

Eagle 673 Specification Sheet

Eagle 673 Safety Data Sheet SDS

APPLICATIONS APPLICATIONS

Wear and abrasion hardfacing for parts subject to extremely high abrasion by coal, ore, sand, cement and gravel.
Deposits are highly resistant to abrasion and erosion at elevated temperatures up to 1600°F.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188.
Use lowest effective amperage while maintaining a short arc length making either stringer beads or weave beads. All welds should be done in the flat or horizontal position and do not deposit more than three layers on top of each other.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 673 Chrome Plus is a high quality hard surfacing electrode with excellent weldability.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: White

Hardness: (RC) Approx. 63 - 65

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes: Inches 1/8, 5/32, 3/16
mm 3.25, 4.00, 5.00
Amperage: 130 - 170 170 - 210 220 - 290
