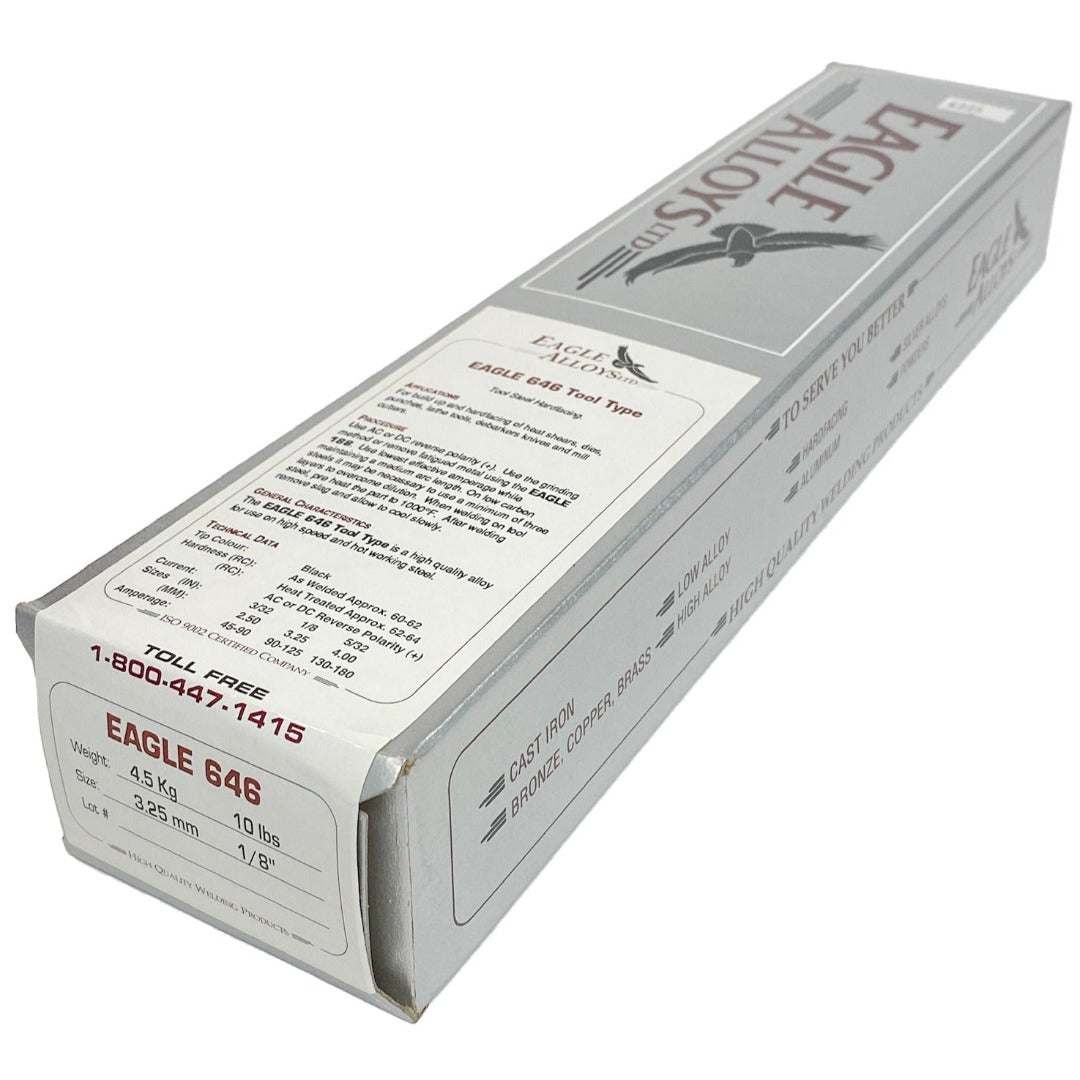

Eagle 646

Name: Eagle 646
Brand: Eagle Alloys Welding
SKU: 646_2.50_1
Price: 52.36 CAD
Availability: InStock

$52.36 CAD

Diameter 3/32"

3/32" 1/8" 5/32”

Size

Free Shipping within Canada

Description Description

Tool Steel Hardfacing

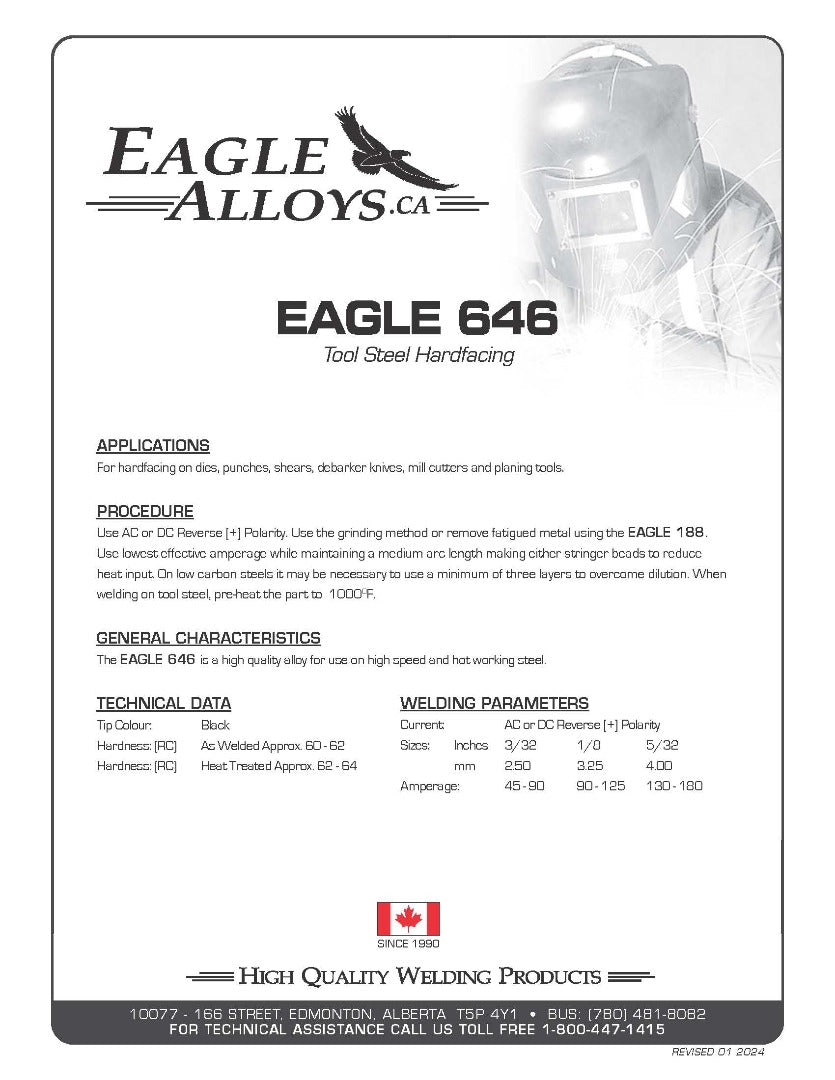

Eagle 646 Specification Sheet

Eagle 646 Safety Data Sheet SDS

Eagle 646 SDS Data Sheet (French)

APPLICATIONS APPLICATIONS

For hardfacing on dies, punches, shears, debarker knives, mill cutters and planing tools.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the Eagle 188.
Use lowest effective amperage while maintaining a medium arc length making either stringer beads to reduce heat input. On low carbon steels it may be necessary to use a minimum of three layers to overcome dilution. When welding on tool steel, pre-heat the part to 1000°F.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The Eagle 646 is a high quality alloy for use on high speed and hot working steel.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Black

Hardness: (RC) As Welded Approx. 60 - 62

Hardness: (RC) Heat Treated Approx. 62 - 64

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes: Inches 3/32 1/8 5/32
mm 2.50 3.25 4.00
Amperage: 45 - 90 90 - 125 130 - 180
