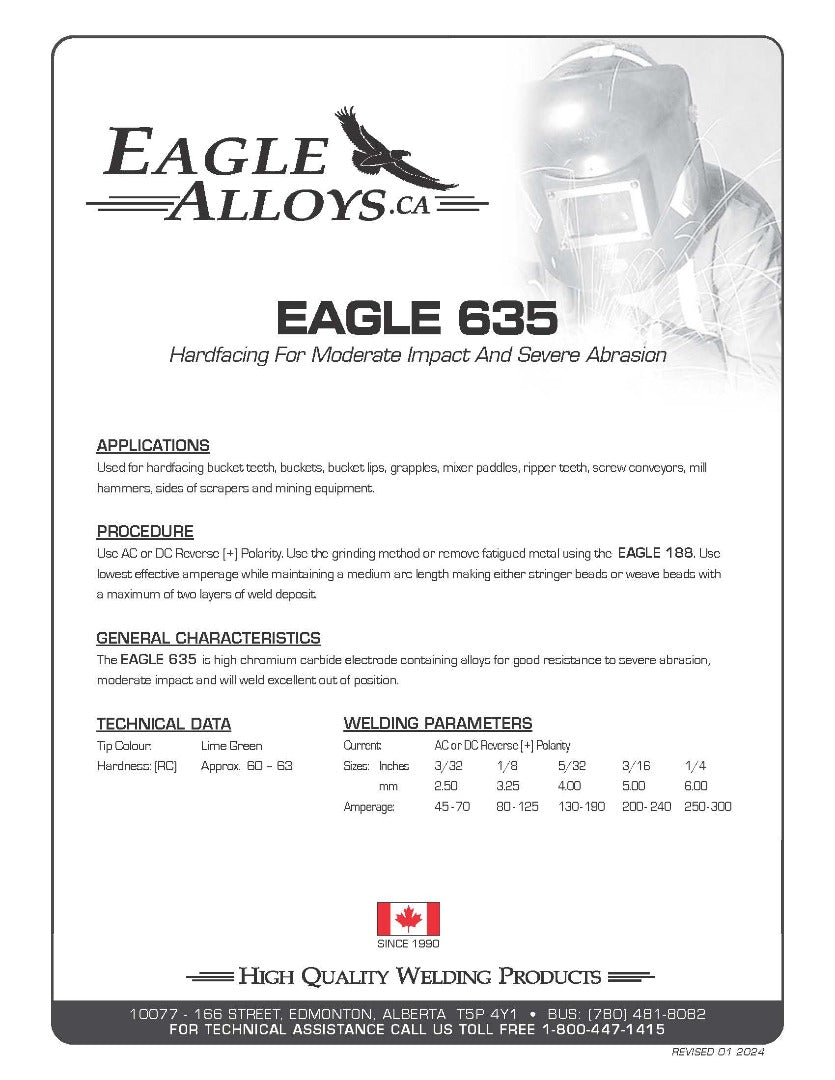

Name: EAGLE 635
Brand: Eagle Alloys Welding
SKU: 635_2.50_1
Price: 61.27 CAD
Availability: InStock

Diameter 3/32"

3/32" 1/8" 5/32" 3/16" 1/4"

Size 1 LB Tube

1 LB Tube 10 LB Sleeve 60 LB Box

Description Description

Hardfacing For Moderate Impact And Severe Abrasion

APPLICATIONS APPLICATIONS

Used for hardfacing bucket teeth, buckets, bucket lips, grapples, mixer paddles, ripper teeth, screw conveyors, mill hammers, sides of scrapers and mining equipment.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use lowest effective amperage while maintaining a medium arc length making either stringer beads or weave beads with a maximum of two layers of weld deposit.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 635 is high chromium carbide electrode containing alloys for good resistance to severe abrasion, moderate impact and will weld excellent out of position.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Lime Green

Hardness: (RC) Approx. 60 – 63

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes: Inches 3/32 1/8 5/32 3/16 1/4
mm 2.50 3.25 4.00 5.00 6.00
Amperage: 45 - 70 80 - 125 130 - 190 200 - 240 250 - 300
