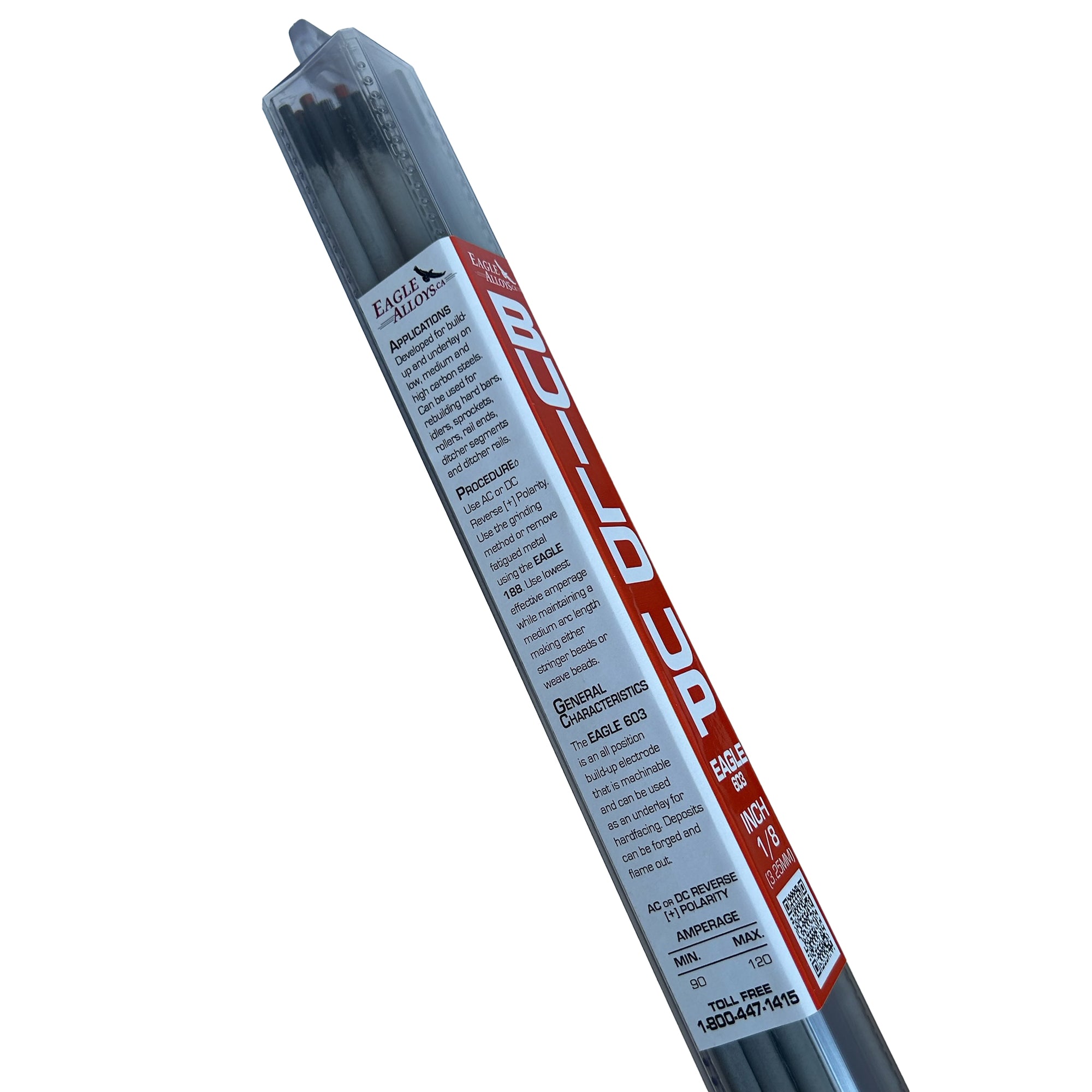

Eagle 603

Name: Eagle 603
Brand: Eagle Alloys Welding
Price: 50.76 CAD
Availability: InStock

$50.76 CAD

Diameter 1/8"

1/8" 5/32" 3/16"

Size

Free Shipping within Canada

Description Description

All Position Build-Up And Underlay For Carbon Steels

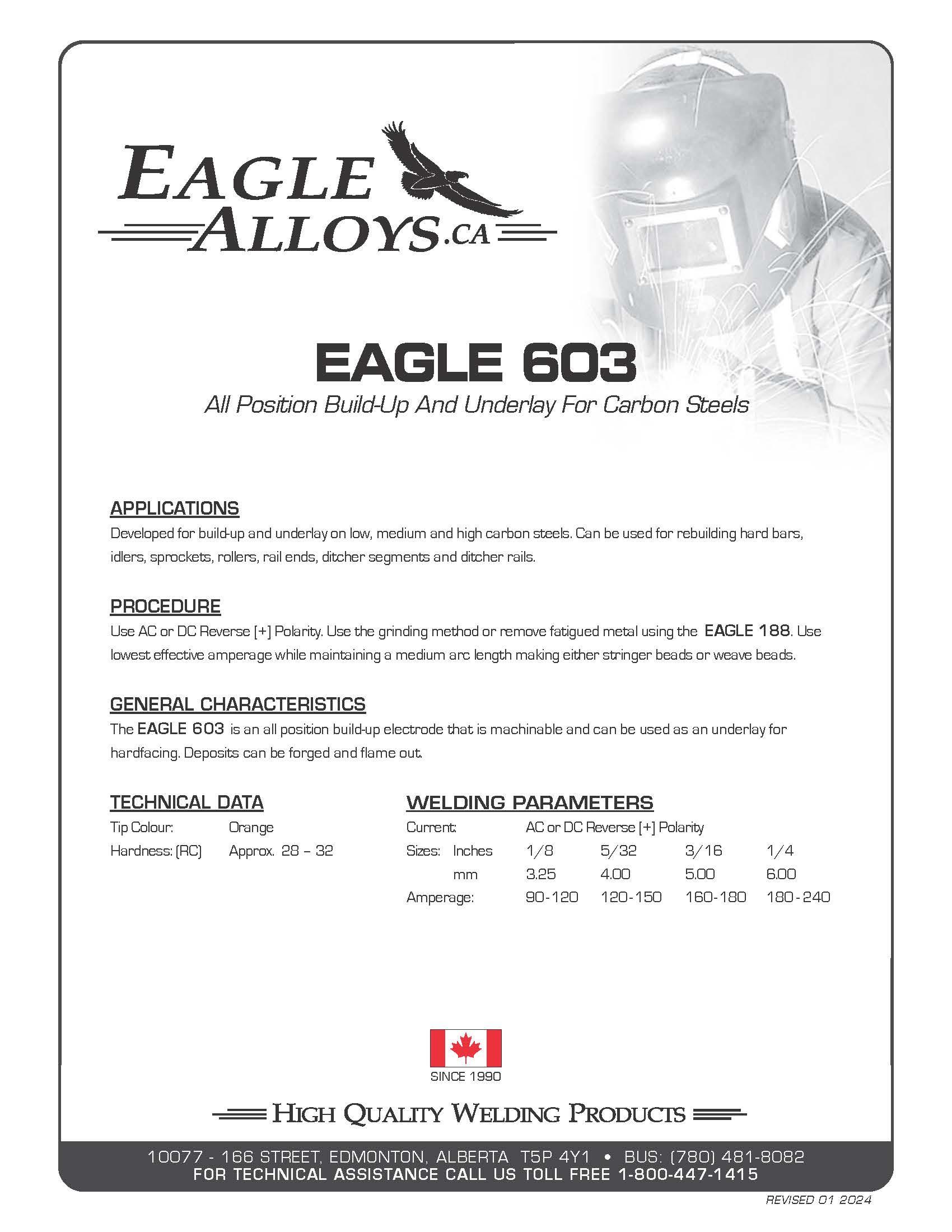

Eagle 603 Specification Sheet

Eagle 603 SDS Safety Data Sheet SDS

Eagle 603 SDS Data Sheet (French)

APPLICATIONS APPLICATIONS

Developed for build-up and underlay on low, medium and high carbon steels. Can be used for rebuilding hard bars, idlers, sprockets, rollers, rail ends, ditcher segments and ditcher rails.

PROCEDURE PROCEDURE

Use AC or DC Reverse [+] Polarity. Use the grinding method or remove fatigued metal using the EAGLE 188. Use lowest effective amperage while maintaining a medium arc length making either stringer beads or weave beads.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 603 is an all position build-up electrode that is machinable and can be used as an underlay for hardfacing. Deposits can be forged and flame out.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Orange

Hardness: (RC) Approx. 28 – 32

WELDING PARAMETERS WELDING PARAMETERS

Current: AC or DC Reverse [+] Polarity
Sizes: Inches 1/8 5/32 3/16 1/4
mm 3.25 4.00 5.00 6.00
Amperage: 90 - 120 120 - 150 160 - 180 180 - 240
