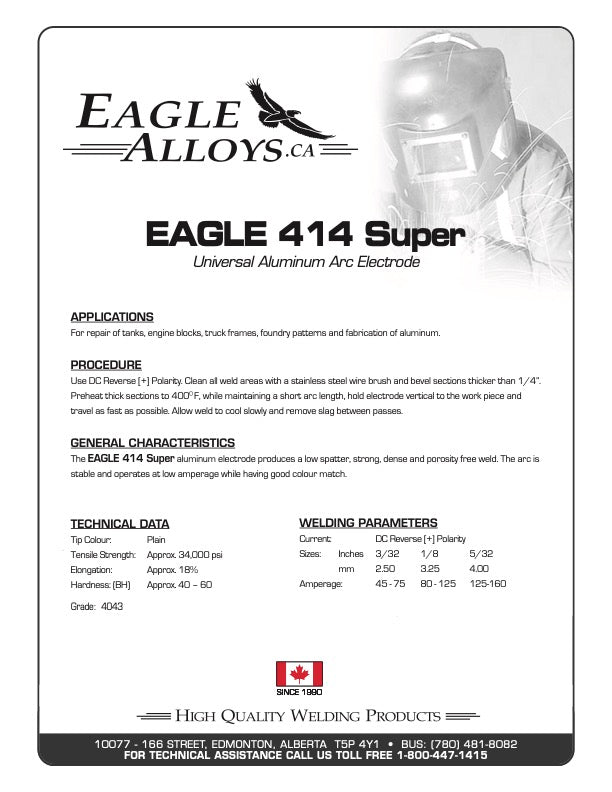

EAGLE 414 Super Universal Aluminum Arc Electrode | Low Spatter PDF

EAGLE 414 Super

Name: EAGLE 414 Super
Brand: Eagle Alloys Welding
SKU: 414_250_1
Price: 87.88 CAD
Availability: InStock

$87.88 CAD

Diameter 3/32"

3/32" 1/8" 5/32"

Size

Free Shipping within Canada

Description Description

Universal aluminum arc electrode

Specially developed all position universal aluminum electrode. Produces low spatter, strong dense porosity free welds.

APPLICATIONS APPLICATIONS

For repair of tanks, engine blocks, truck frames, foundry patterns and fabrication of aluminum.

PROCEDURE PROCEDURE

Use DC Reverse [+] Polarity. Clean all weld areas with a stainless steel wire brush and bevel sections thicker than 1/4”.
Preheat thick sections to 400℉, while maintaining a short arc length, hold electrode vertical to the work piece and travel as fast as possible. Allow weld to cool slowly and remove slag between passes.

GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS

The EAGLE 414 Super aluminum electrode produces a low spatter, strong, dense and porosity free weld. The arc is stable and operates at low amperage while having good colour match.

TECHNICAL DATA TECHNICAL DATA

Tip Colour: Plain

Tensile Strength: Approx. 34,000 psi

Elongation: Approx. 18%

Hardness: (BH) Approx. 40 – 60

WELDING PARAMETERS WELDING PARAMETERS

Current: DC Reverse [+] Polarity
Sizes: Inches 3/32 1/8 5/32
mm 2.50 3.25 4.00
Amperage: 45 - 75 80 - 125 125-160
